FRP Products for Buildings & Construction

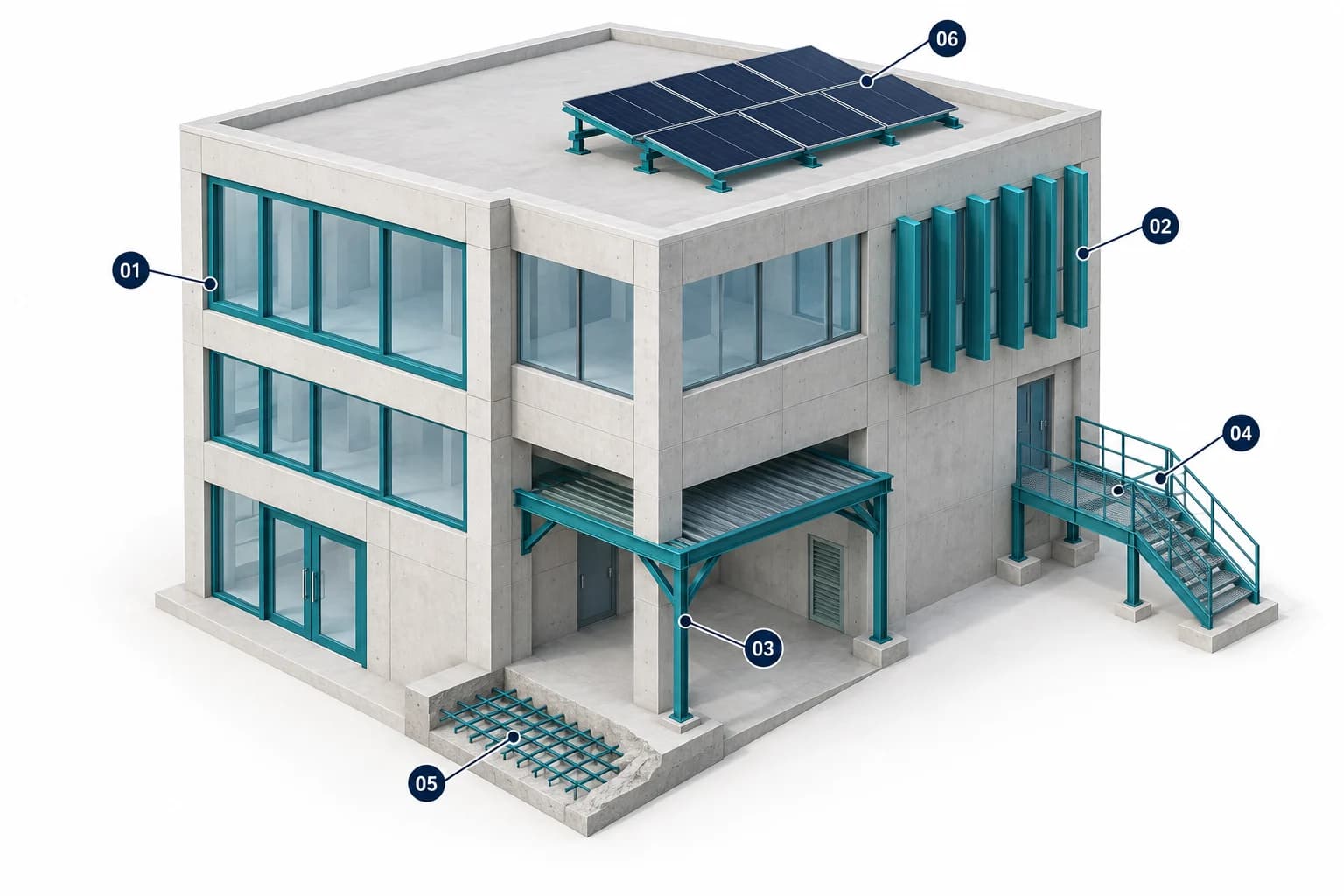

Start with the purchasing scope. A fabricator ordering window and door profiles needs section drawings, cutting and joining details, coating requirements and hardware interfaces. A contractor ordering finished windows needs an opening schedule, operating types, glazing build-up, installation dimensions and the performance evidence for the proposed system. Keeping these routes separate prevents a quote for lineal profiles from being compared with a quote for installed-ready units.

Reinforcement inserts and door thresholds solve more specific problems. An insert must fit the host frame and transfer screw and hardware loads; a threshold must coordinate sill support, drainage, seals and the floor transition. For an energy retrofit, examine the perimeter joint and adjacent wall as carefully as the new frame: a conductive fixing or poorly insulated reveal can limit the improvement at the opening.

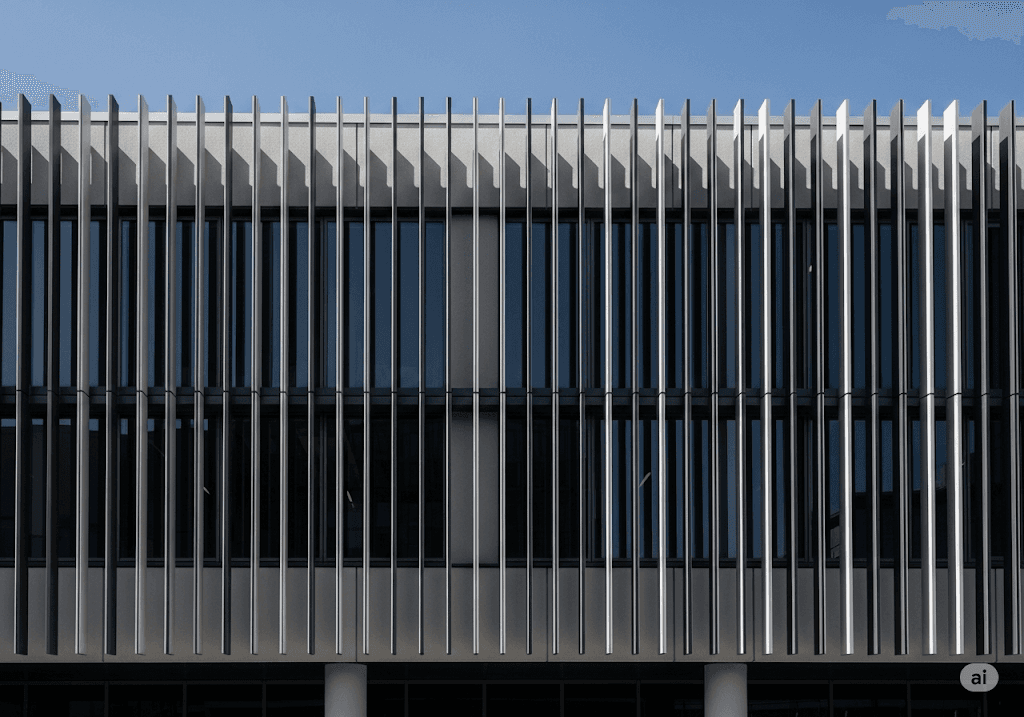

Wind pressure and suction, self-weight, torsion and allowable deflection determine the section and bracket spacing. Reinforcement across the blade and around fixing locations matters alongside longitudinal stiffness. At the connection, check bolt bearing, pull-through, edge distance, local restraint and movement. A headline material modulus cannot establish the capacity of an entire sunshade assembly.

Follow the full heat-flow path through the facade. A low-conductivity FRP member can reduce a thermal bridge, but metal anchors and adjoining components still contribute. Specify the exposed finish, color and weathering requirements, then review the fire evidence for the exact laminate and intended assembly. Shading blades should not be confused with a complete weatherproof wall panel or a tested rainscreen system.

FRP is directional: properties along the continuous fibers differ from those across the section. Deflection, creep under sustained load, shear, local buckling and connection behavior can control a member before its longitudinal tensile strength is fully used. Replacing a steel member with an identically sized FRP section is therefore an engineering redesign, even where both sections have the same external dimensions.

Plan fabrication early. Hole locations, end bearing, splice plates, bracing and fastener materials belong on the assembly drawing. Confirm how cut edges and drilled surfaces will be treated for the exposure. For repeated assemblies, a custom profile can incorporate useful returns or interfaces, but tooling and sample approval should be weighed against a standard section with secondary fabrication.

Open mesh allows drainage but also lets small objects pass through. Mesh opening, footwear, wheeled equipment and accessibility requirements may lead to a smaller opening or a closed surface. Structural deck panels provide a different route through closed or multi-cell sections. They still require support and joint design, surface selection and drainage detailing; a closed top does not by itself establish a watertight roof or floor assembly.

Specify stair treads together with their nosings and supports. A tread cover improves an existing substrate's surface; it is not automatically a spanning stair tread. Handrails need post spacing, infill and anchorage coordinated with the supporting frame. Fixed ladders need landing, clearance, bracket and fall-protection interfaces resolved. For any escape route or public circulation area, confirm the applicable access and fire requirements before choosing an industrial access product.

The structural design must account for the selected bar's modulus, bond, anchorage, environmental reductions and failure behavior. GFRP does not provide steel's yield plateau, and a higher tensile strength does not justify a diameter-for-diameter substitution. Crack width, deflection, fire exposure and detailing need review under the governing design basis for the actual building element.

Order from an approved bar schedule showing diameters, quantities, cut lengths and bend geometry. Bends and stirrups must be factory-formed to the specified shape; do not plan to bend cured bars on site. Tie material identification, guaranteed properties and production records to the offered grade. Where electrical insulation matters, distinguish glass- and basalt-fiber bars from electrically conductive carbon-fiber reinforcement.

For a mounting system, provide the roof geometry, module layout, support spacing and governing wind and snow conditions. The design must establish the path from module clamps through rails, joints and anchors into the building. Check concentrated loads on the roof, uplift restraint, thermal movement and the waterproofing detail. A lightweight support profile does not remove the need to verify the existing roof's capacity.

Cable tray supports and cooling-tower frames are additional building-services uses for standard or custom profiles. Match the section and resin to the supported equipment, vibration, moisture, chemical exposure and service temperature. Coordinate maintenance walkways from the access range and resolve bonding, grounding and lightning protection for the complete installation; insulating supports alone do not settle those requirements.
