Plate 01
| Profile | A | B | t1 / t2 | Source ID |
|---|---|---|---|---|
| Plate 01 | 634 | 60 | 3.2 / 3.5 | KF-0665 |
F1-STRUX· Hollow & multi-cell
Hollow & multi-cell fiberglass profiles
Compare hollow, multi-cell and edge-formed fiberglass plate sections by drawing, A/B/t1/t2 source values and source ID. Final dimensions, material, tooling status and capacity are confirmed on the approved quotation drawing.

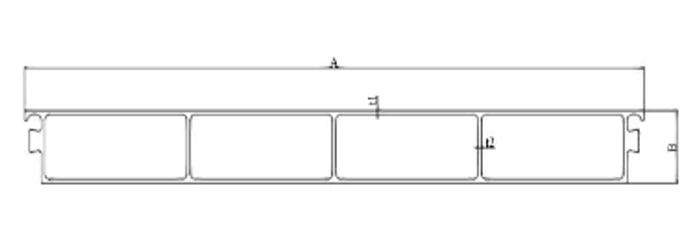

FIG. 1 Plate 01Source drawing
Plate, sheet or deck?
These plates are constant-section pultrusions with cavities, internal webs and profile-specific edges. Select them from the section drawing first, then confirm the dimensions and laminate against the intended duty.
Need solid flat stock for liners, covers or fabricated blanks? Use the separate fiberglass sheets page. Need an engineered walking or bridge surface? Start with structural FRP deck panels, where support, joint and load requirements control selection.
Some hollow or multi-cell plate geometries may also be reviewed for use as engineered FRP sound barrier wall panels. That use requires the joint, posts, laminate, loads, closures and any acoustic build-up to be checked together; a plate record alone does not establish an acoustic rating or span.
19 plate records across 15 schematic families
Every catalog record is listed independently. Where the source merges one drawing across several rows, the shared schematic is shown once with each A/B/thickness/ID variant beneath it.

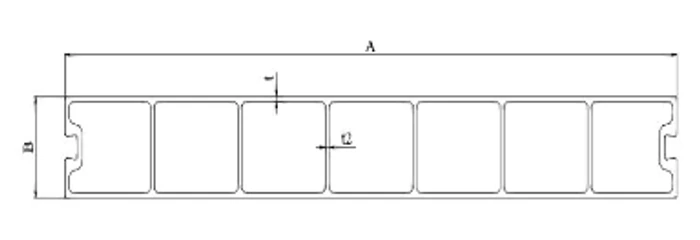

Plate 02
| Profile | A | B | t1 / t2 | Source ID |
|---|---|---|---|---|
| Plate 02 | 600 | 80 | 4 / 3.5 | KF-0307 |

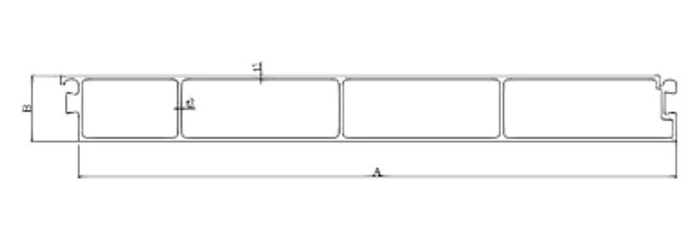

Plate 03
| Profile | A | B | t1 / t2 | Source ID |
|---|---|---|---|---|
| Plate 03 | 617 | 60 | 3.2 / 3.5 | KF-0706 |

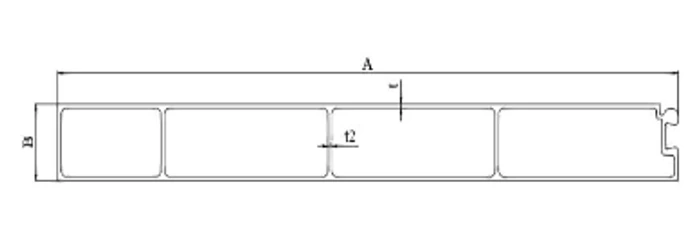

Plate 04
| Profile | A | B | t1 / t2 | Source ID |
|---|---|---|---|---|
| Plate 04 | 600 | 60 | 3.2 / 3.5 | KF-0664 |

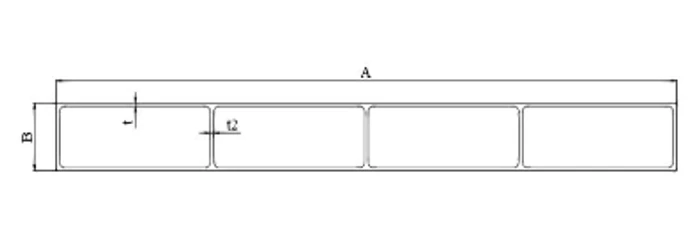

Plate 05
| Profile | A | B | t1 / t2 | Source ID |
|---|---|---|---|---|
| Plate 05 | 600 | 60 | 2.8 / 3.5 | KF-0707 |

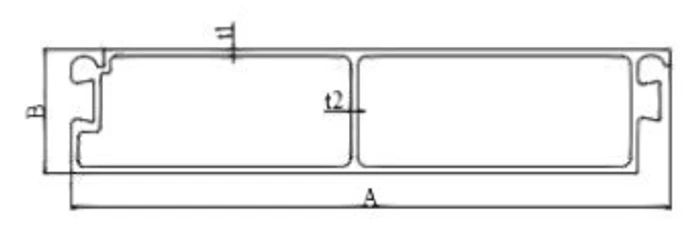

Plate 06
| Profile | A | B | t1 / t2 | Source ID |
|---|---|---|---|---|
| Plate 06 | 317 | 60 | 3.2 / 3.5 | KF-0704 |

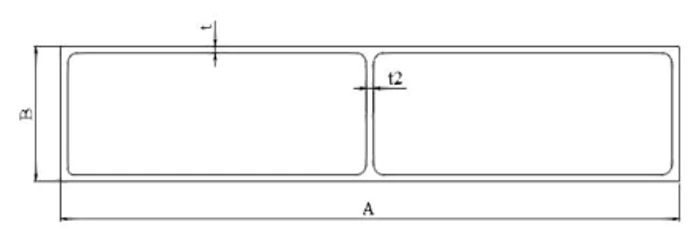

Plate 07–09Shared source schematic for Plates 07–09
| Profile | A | B | t1 / t2 | Source ID |
|---|---|---|---|---|
| Plate 07 | 300 | 60 | 2.8 / 3.5 | KF-0705 |
| Plate 08 | 200 | 50 | 2.8 | KF-0883 |
| Plate 09 | 380 | 140 | 15 / 10 | KF-1019 |

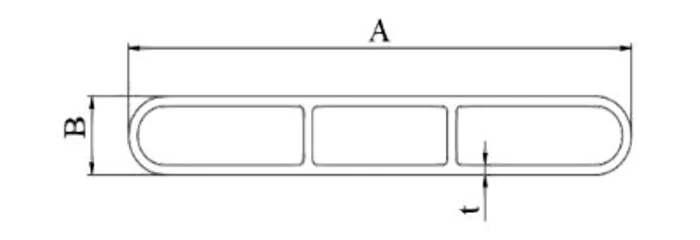

Plate 10
| Profile | A | B | t1 / t2 | Source ID |
|---|---|---|---|---|
| Plate 10 | 140 | 20 | 2.5 | KF-0790 |

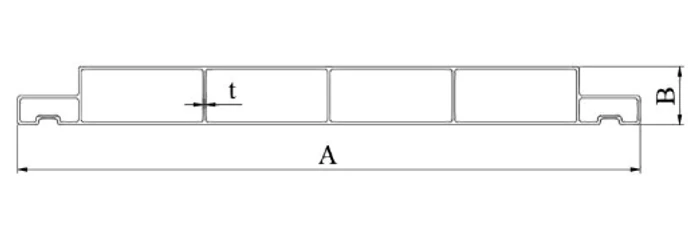

Plate 11
| Profile | A | B | t1 / t2 | Source ID |
|---|---|---|---|---|
| Plate 11 | 1000 | 90 | 4 | KX-0510 |

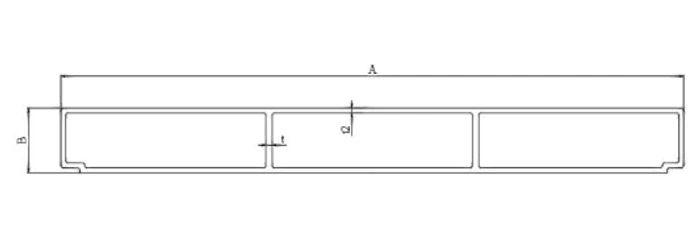

Plate 12
| Profile | A | B | t1 / t2 | Source ID |
|---|---|---|---|---|
| Plate 12 | 491 | 49.1 | 5 / 3.8 | KF-0645 |

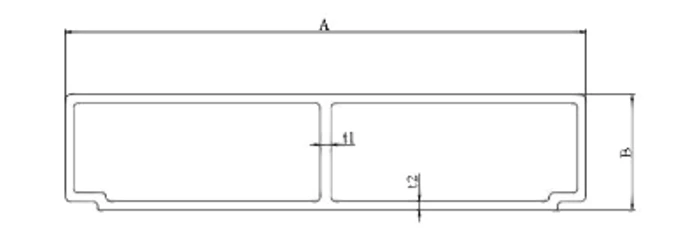

Plate 13
| Profile | A | B | t1 / t2 | Source ID |
|---|---|---|---|---|
| Plate 13 | 241 | 49.1 | 5 / 3.8 | KF-0669 |

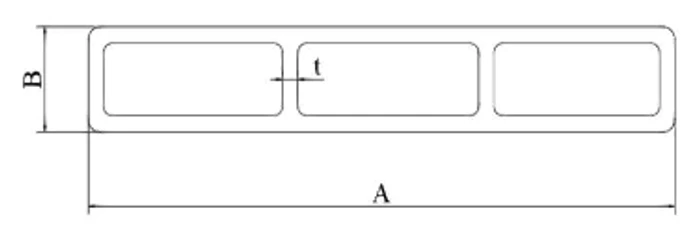

Plate 14
| Profile | A | B | t1 / t2 | Source ID |
|---|---|---|---|---|
| Plate 14 | 97.2 | 16 | 2.5 | KX-0899 |

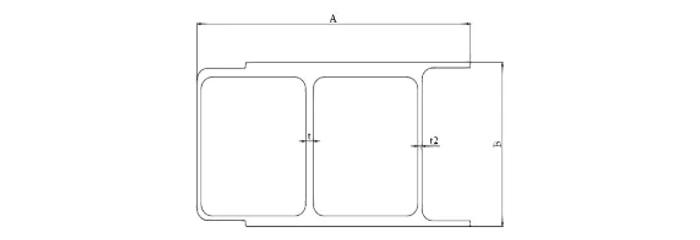

Plate 15–17Shared source schematic for Plates 15–17
| Profile | A | B | t1 / t2 | Source ID |
|---|---|---|---|---|
| Plate 15 | 400 | 220 | 11 / 6.5 | JB-0416 |
| Plate 16 | 301 | 160 | 6 / 4 | JB-0294-B |
| Plate 17 | 500 | 40 | 4 | JB-0775 |

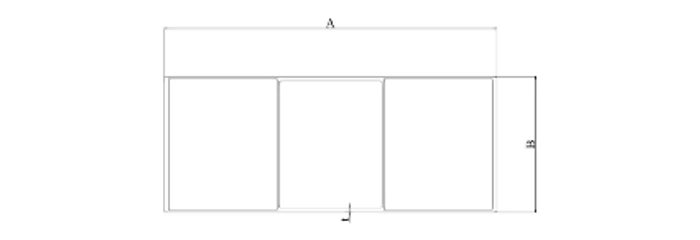

Plate 18
| Profile | A | B | t1 / t2 | Source ID |
|---|---|---|---|---|
| Plate 18 | 800 | 300 | 3.5 / 10 | J-0846 |

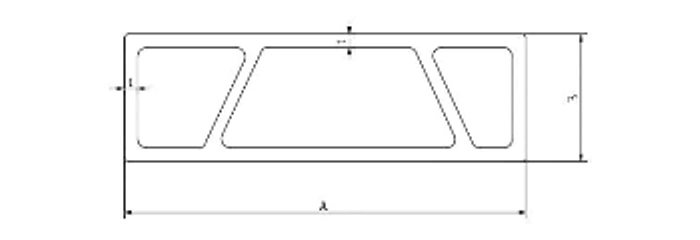

Plate 19
| Profile | A | B | t1 / t2 | Source ID |
|---|---|---|---|---|
| Plate 19 | 90.2 | 28.4 | 3 | CB-0839 |
Four checks before a plate profile enters an RFQ
- Check 1
Match the section drawing
Start with the cavity, return and edge geometry. Similar A/B values do not make two profiles interchangeable.
- Check 2
Confirm every dimension
The supplied table does not show a unit, tolerance or dimension definition. Confirm A, B and t1/t2 on the quotation drawing.
- Check 3
State the actual duty
Provide orientation, support spacing, loads, connection points, environment, fire requirement, finish and cut length.
- Check 4
Release an approved profile
Tooling status, laminate, resin, capacity and acceptance criteria are order-specific and must be fixed before production.
Questions buyers ask
What is the difference between a fiberglass plate and a fiberglass sheet?
This catalog contains hollow, multi-cell and edge-formed pultruded profiles. The legacy Plate labels identify source drawings; they do not mean solid flat stock. For solid flat laminate, use the fiberglass sheets page. Specify the actual cross-section rather than relying on the word plate.
How is this plate catalog different from the structural FRP deck-panel page?
This page is a geometry-led catalog of 19 plate profile references. The deck-panel page is application-led and treats a closed profile as part of a deck system with support, joint, connection and load requirements. A plate profile is not automatically approved as a walking or bridge deck.
What do A, B and t1/t2 mean in the table?
They are the dimension labels shown on the supplied section drawings. Because the visible source does not state the unit, tolerance or formal dimension definitions, the values are reproduced without an inferred unit. The approved quotation drawing must define them.
Why do Plates 07–09 and Plates 15–17 share drawings?
The source table uses one merged schematic cell for each of those groups while listing separate A, B, thickness and catalog-ID records. They remain separate products in the data table and share only the source schematic.
Do the source IDs guarantee stocked tooling?
No stock, ownership or production-availability claim is made from the source table alone. Use the ID as a quotation reference; F1 confirms tooling status, minimum order, resin system, finish and lead time before accepting an order.
Do the section drawings provide span or load capacity?
No. Section geometry and nominal thickness values do not establish structural capacity. Send the load case, span, support and deflection criteria so the selected laminate and profile can be checked for the project.
Quote a plate profile
Send the source ID or drawing, the cut length and quantity, the duty and the destination. We reply within one business day; a formal quotation follows once the specification and delivery are reviewed.
- Lengths & tolerances
- Use 6 m as the standard-length inquiry reference or specify cut lengths and counts. Identify the required tolerance standard, holes and end cuts on your drawing; available lengths and dimensional acceptance are confirmed for the selected section.
- Resin & surface
- Give the chemicals, concentrations, temperature, outdoor exposure, color and fire requirements. Review the proposed resin, reinforcement and surface treatment against those conditions and the evidence for the offered material.
- Quantity & samples
- Give the trial quantity, expected repeat demand and target delivery date. Minimum quantities, sample arrangements and the production schedule are confirmed for the section, material and fabrication scope in the quotation.
- Documents & delivery
- List the required drawings, material reports and batch inspection records. Confirm which documents cover the offered product, any additional testing, the packing method and available delivery terms for your destination.
