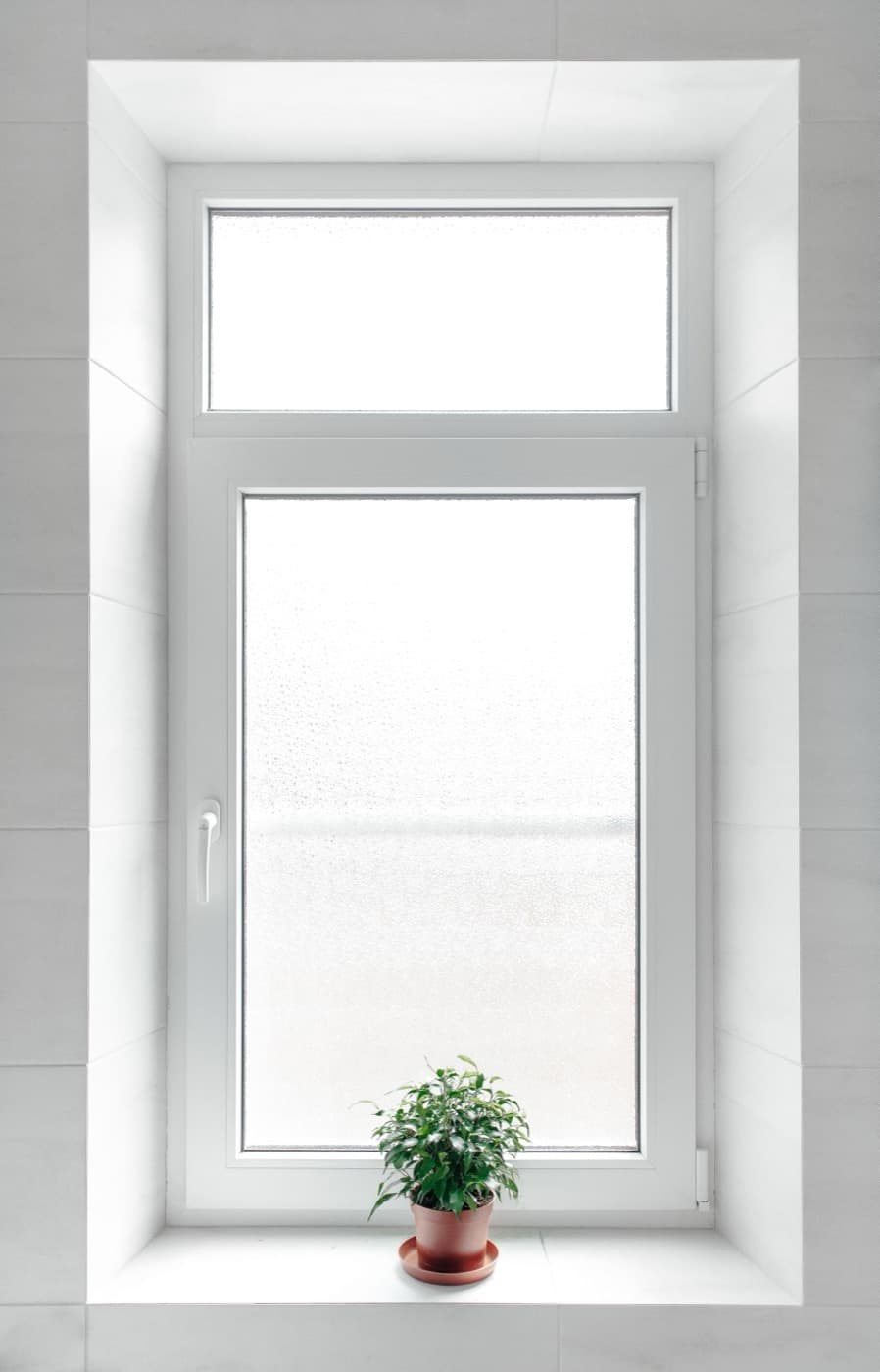

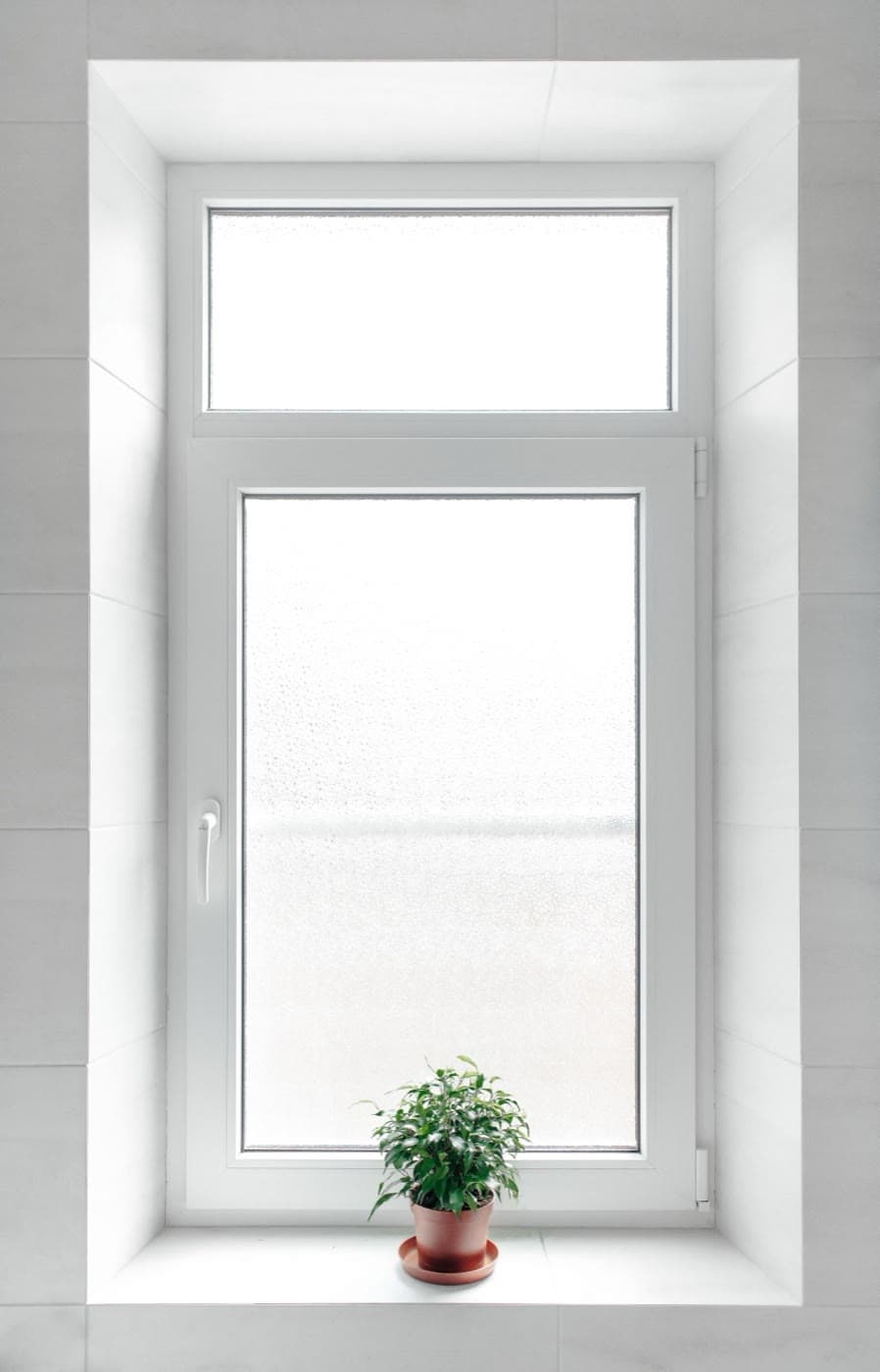

Every white frame like the one pictured hides a structural question inside its largest hollow chamber: what carries the glass load once the sash grows past a kitchen-casement size? For decades the answer has been a galvanized steel insert — invisible in the finished window, decisive for its U-value. Replacing that insert with a pultruded fiberglass core can help a standard uPVC system compete thermally in energy-code-driven markets, without retooling the uPVC extrusion itself.
uPVC sash and mullion profiles above roughly 1.2 m span deflect beyond code limits under glass dead load and wind load, so system houses insert U-shaped or rectangular galvanized steel into the hollow chamber. The steel restores stiffness but also adds a continuous cold bridge through an otherwise insulating frame, which raises the frame U-value (Uf). The size of that penalty depends on the profile and is shown by the system's Uf calculation to EN ISO 10077-2.
A pultruded fiberglass reinforcement core delivers stiffness in the same chamber at ≈ 0.3 W/m·K conductivity — roughly 1/170th of steel — so the reinforced chamber stays part of the thermal envelope instead of a leak through it. It also cannot rust inside the chamber. The material has about a quarter of steel's density, so even the larger section needed for stiffness is usually lighter than the steel insert, and it is cut and screwed on the same fabrication line.
Composite window reinforcement is an established European practice — glass-fiber reinforced cores replacing steel are specified by major uPVC system houses for their high-thermal window lines. The engineering trade is straightforward: fiberglass runs a lower elastic modulus than steel, so the section is engineered — deeper webs, thicker walls, or higher glass loading — to match the target stiffness within the same chamber envelope.
Background on the steel thermal bridge: see the reinforcement discussion in FRP vs PVC window frames.
They are continuous pultruded fiberglass sections — U-channels, box sections, or flat bars — inserted into the reinforcement chamber of a vinyl (uPVC) window profile in place of the conventional galvanized steel insert. The composite core restores the stiffness the uPVC profile lacks above roughly 1.2 m span, but at ≈ 0.3 W/m·K thermal conductivity instead of steel's ≈ 50 W/m·K, so the reinforced frame keeps its insulating value. The category is established practice in European high-thermal uPVC systems.
Three reasons. Thermal: steel reinforcement is a continuous cold bridge that raises a reinforced uPVC frame's U-value; fiberglass largely removes that penalty, which matters most on passive-house and energy-code-driven projects. Corrosion: steel inserts can corrode inside the chamber from condensation over the service life; fiberglass cannot rust. Weight and logistics: fiberglass has about a quarter of steel's density, so the composite core is usually lighter than the steel insert even at a larger section, reducing sash weight, hardware load and freight.
Not at equal section. Pultruded fiberglass has an elastic modulus of roughly 23–40 GPa along the profile (EN 13706-3 grade E23 requires at least 23 GPa) against steel's ≈ 200 GPa, so a drop-in copy of the steel section would be too flexible. The reinforcement is instead engineered to a target bending stiffness (EI) within the chamber envelope: deeper section, thicker walls, higher glass loading, or a combination. For most sash and mullion chambers there is enough room to reach the required EI; where there is not, we tell you at the drawing stage rather than after tooling.
Yes — vinyl (uPVC) window systems are exactly where pultruded fiberglass reinforcement is used. The fiberglass core slides into the same internal chamber the galvanized steel insert occupies today and is fixed the same way, so the vinyl extrusion itself does not change and the fabrication line needs no retooling beyond a carbide saw blade. The gain is thermal: a steel-reinforced vinyl frame loses part of its insulating value to the steel bridge, and the fiberglass core largely removes that penalty. That can help a vinyl system meet a stricter energy-code target; confirm the result with the system's Uf and Uw calculation.
There are three established alternatives to galvanized steel reinforcement in uPVC window chambers. Pultruded fiberglass (GRP) cores — the product on this page — replace steel stiffness with an engineered composite section at ≈ 0.3 W/m·K conductivity. Glass-fiber-reinforced thermoplastic composite reinforcements are the same idea executed by several European system houses for their high-thermal lines. And frame-material substitution — moving the whole window to pultruded fiberglass profiles — removes the reinforcement question entirely, since FRP frames carry the loads without any insert. Which route fits depends on whether you are optimizing an existing uPVC system (composite core) or specifying a new high-performance line (FRP frames).
Send the chamber drawing (or a physical sample lineal) and the stiffness target — either the steel section currently specified or the deflection criterion itself. F1 returns a proposed composite section with calculated EI, resin recommendation, and tooling quote. Qualification then follows the standard custom-pultrusion path: die in 4–8 weeks, first-article dimensional and flexural reports, then staged production. Batch mill certificates and third-party inspection (SGS/BV) are supported for ongoing supply.
Send the chamber drawing and the stiffness target; F1 returns a proposed composite section with calculated EI, a resin recommendation and a tooling quote. We reply within one business day; a formal quotation follows once the specification and delivery are reviewed.
