Application· Swimming pool facilities

FRP components for swimming pool facilities

Pool facilities combine wet public areas, chemical-handling rooms and reinforced concrete. Match each location to its own product and acceptance criteria, from maintenance platforms to the reinforcement specified for the pool shell.

FIG. 1 Swimming pool facilitiesPool-shell reinforcement section
Concrete pool-shell section showing GFRP bars within the concrete cover, factory-formed corner bars and lap regions.Open diagram at full size (opens in a new tab)
Bars sit inside the concrete shell with cover. Factory-formed corner bars overlap the straight bars at the marked lap regions; placement follows the engineered reinforcement schedule.

Last updated

Request a quoteReview design checksWhatsApp

Where it fits and what we supply

Pool plant rooms, equipment access platforms and engineered pool-shell reinforcement packages. Public walking surfaces require a finish qualified for their actual use.

F1 can review profiles, grating and reinforcement inquiries against the project schedule. The structural designer, pool designer and electrical designer define the accepted system and interfaces.

This page describes how the products are used; design and installation are included only where the quotation says so.

All product familiesIndustries

Recommended profiles and resin

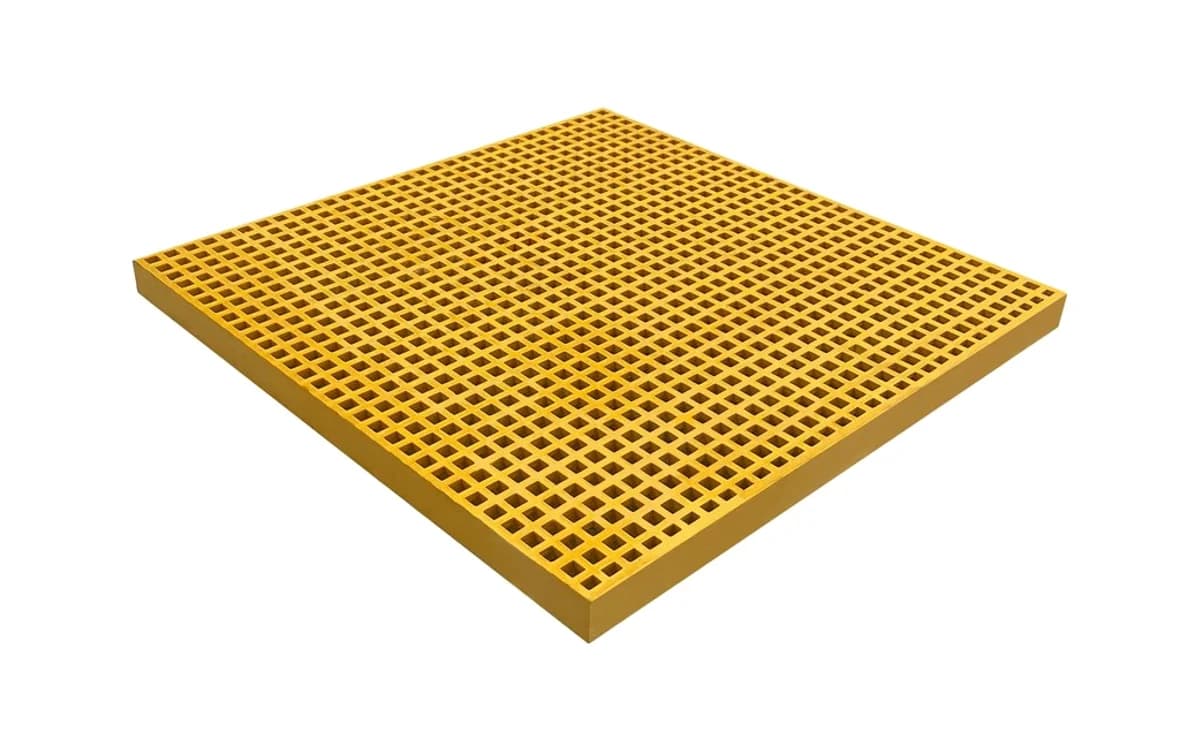

  1. 01Grating and support profiles for plant-room access and equipment platforms
  2. 02Handrail components with a suitable surface finish and connection design

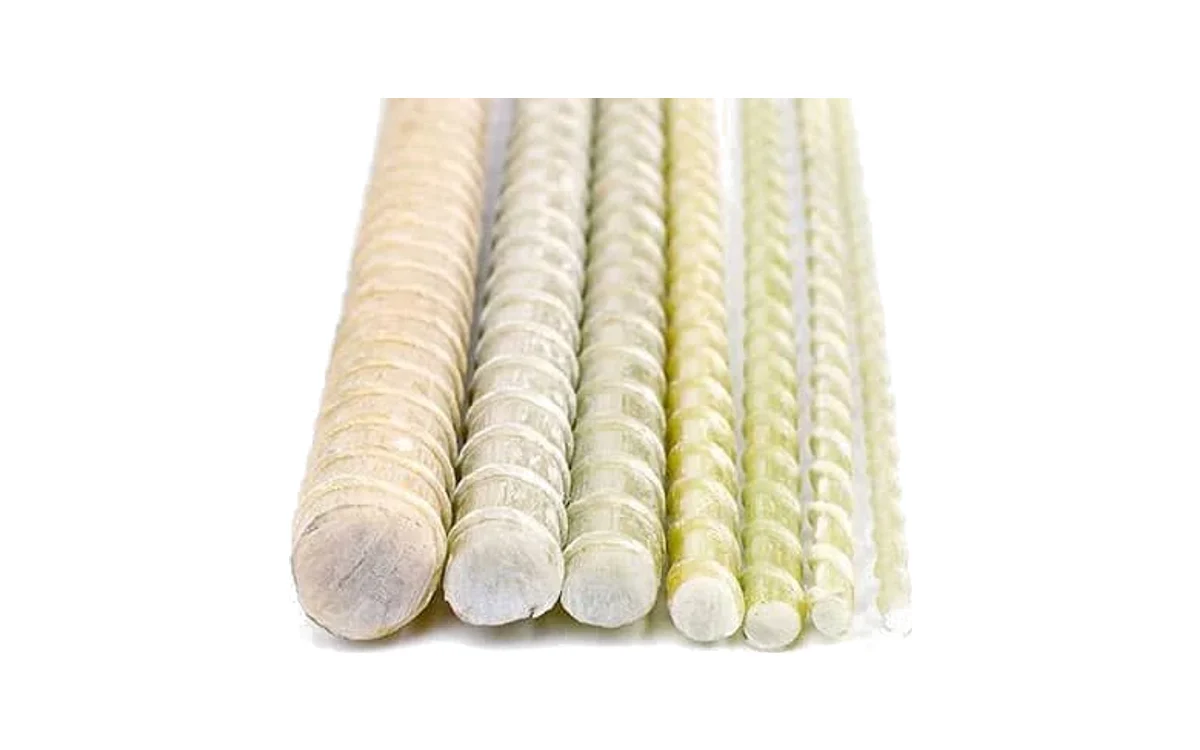

  3. 03GFRP concrete reinforcing bars, factory-formed bends and mesh per an engineered schedule

Resin

Provide the chemical names, concentrations, cleaning agents, temperature and whether exposure is splash, vapor or immersion. Review grade-specific compatibility instead of assuming all fiberglass tolerates all pool chemicals.

Standards commonly referenced

  • EN 15288-1/-2 · public pools
  • EN 16165 Annex A · barefoot slip
  • NEC Art. 680 / IEC 60364-7-702 · bonding
  • ACI 440.11-22 · GFRP-reinforced concrete

Specification and test references, not certifications of a product.

Design and specification checks

  1. Check 1

    Wet surfaces

    Specify footwear or barefoot use, openings, edge finish, cleanability and the required slip test. An industrial gritted surface may be unsuitable for barefoot public areas.

  2. Check 2

    Pool-shell design

    GFRP reinforcing bars require a design using their own properties, bond and bend details. Confirm crack control, cover and water-retaining requirements with the structural designer.

  3. Check 3

    Electrical and access

    A GFRP-reinforced shell has no reinforcing steel to serve as the bonding grid, so the electrical design must provide its own equipotential bonding, such as the copper grid of NEC 680.26(B)(1)(b) or the supplementary bonding of IEC 60364-7-702. Metallic equipment and accessories still need the project electrical design.

Separate public poolside finishes from maintenance access

Maintenance staff in footwear and barefoot visitors interact with surfaces differently. Define the user, cleaning regime and wet slip criteria for every area rather than extending one industrial grating specification throughout the facility.

For concrete reinforcement, fix the complete bar schedule before manufacture. Factory-formed bends, laps, supports and placement details must be coordinated with the pool design; do not improvise field bending of cured GFRP bars.

Quote Swimming pool facilities

Send the inputs below with a drawing or sketch, and the destination. We reply within one business day; a formal quotation follows once the specification and delivery are reviewed.

Request a quoteWhatsApp
Facility layout and intended use of each component
Load, span and support details for access areas
Bar schedule and approved concrete reinforcement design
Chemical exposure and surface acceptance requirements
Electrical interfaces, quantities and destination
