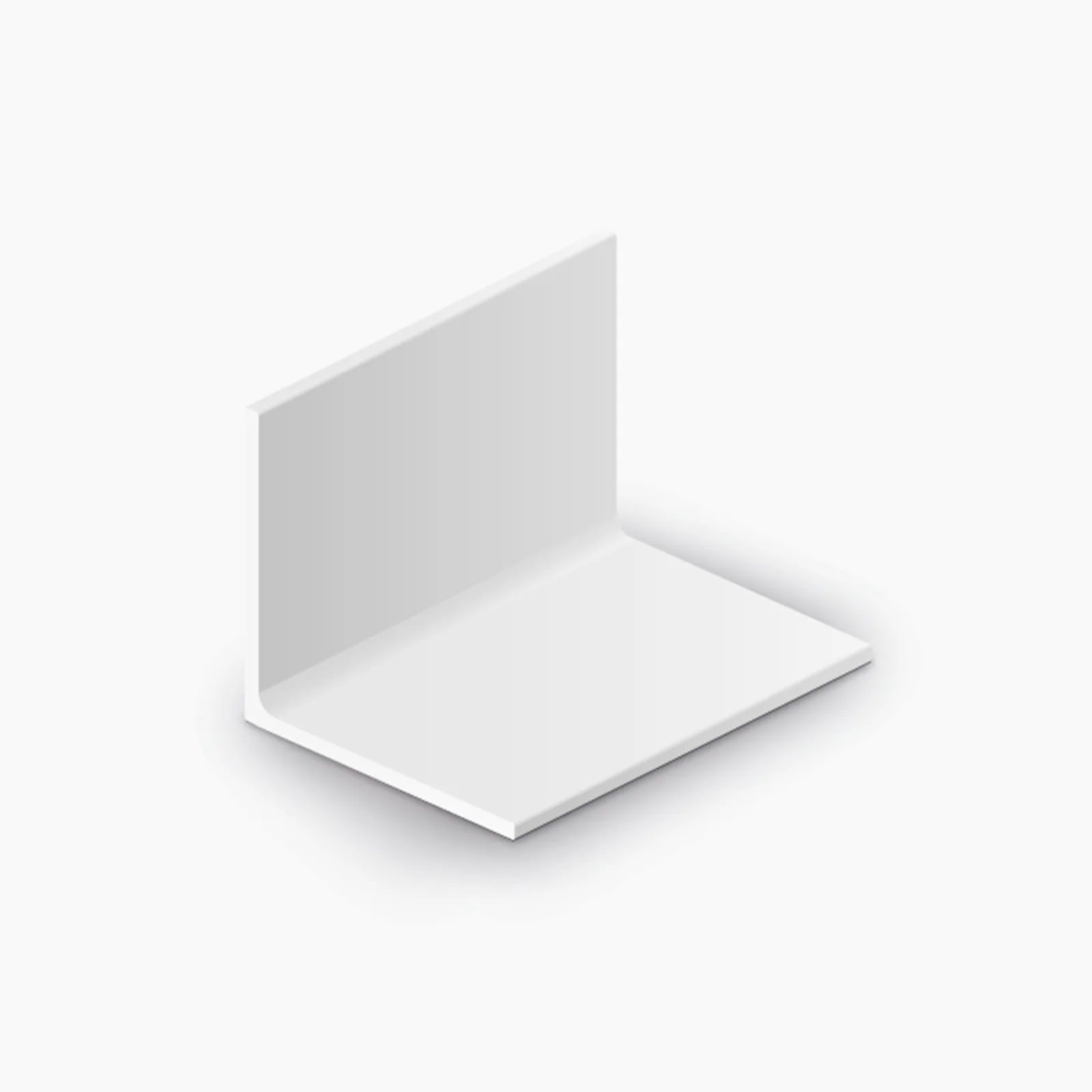

Fiberglass angle (FRP) profiles

Equal-leg pultruded fiberglass L-profiles for bracing, ledgers and fabricated supports. Compare catalog sections, or submit an unequal-leg drawing for custom review. Define holes and load transfer separately for connection cleats.

FIG. 1 L 100×100×8Schematic · not to scale
A
1,536 mm²
Ix
148.2 cm⁴
Mass
2.5 kg/m

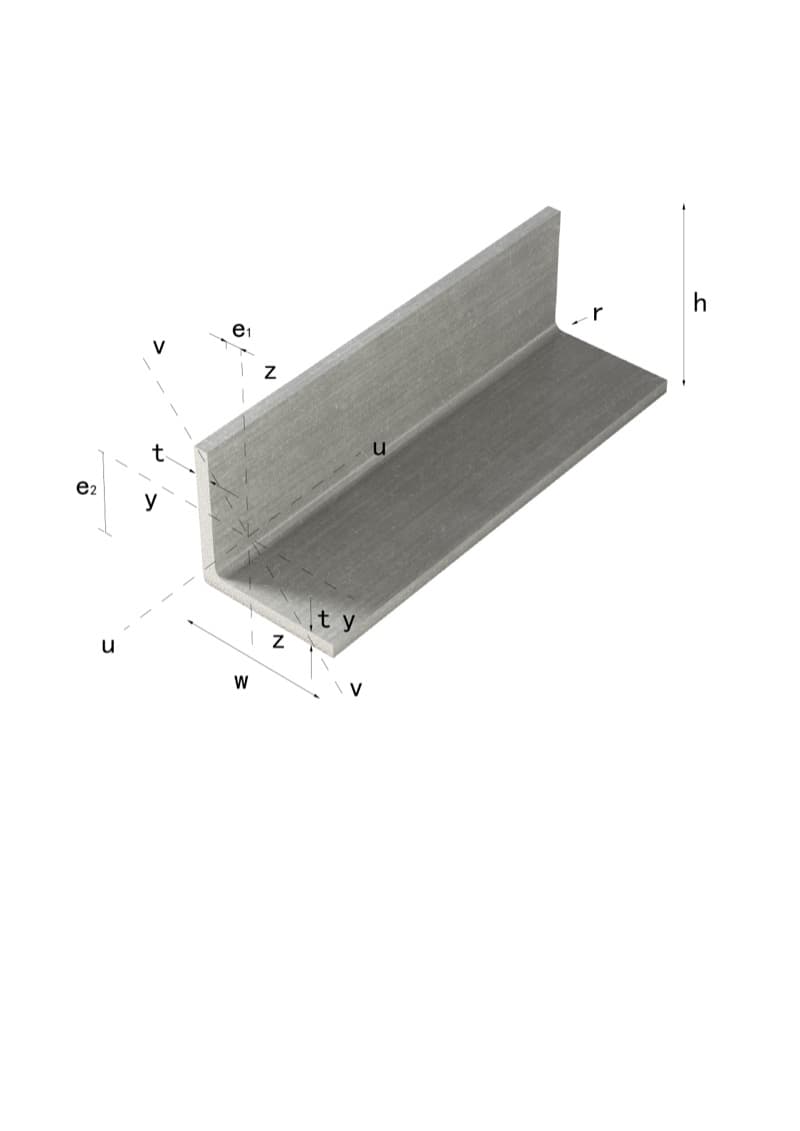

Cross-section of L 100×100×8, one catalog size. Mass is the published catalog value; A and Ix are calculated from the nominal section.
Catalog sizes
15
Leg
25–152 mm
Mass
0.3–6 kg/m
Section
L-profile

Last updated

Request a quoteFind a sizeWhatsApp

Overview

FRP angles can form bracing members, edge supports and ledgers when the section and connections are designed for the application. Choose the leg dimensions and thickness, then define how each leg bears against or attaches to the surrounding structure.

A cut or drilled angle used as a cleat needs its own fabrication drawing and connection check. For unequal legs or an unlisted section, send the required geometry and quantity so tooling and manufacture can be reviewed.

  • Equal-leg catalog sections
  • Unequal legs: custom review
  • Specify cleat and hole details
  • 6 m lengths or cut to size

Typical uses

Sizes 15 catalog sizes

Filter and compare in the profile finder
Dimensions in mm, mass in kg/m. Ix and Wx are calculated from the nominal section, about the centroidal axis parallel to a leg, for preliminary sizing.
FRP angle catalog sizes with nominal section properties. Select a column heading to sort.
ModelDrawing and quote
L 25×25×3.225253.20.30.8650.492DXFQuote
L 30×30×4303040.41.8550.882DXFQuote
L 38×38×4.838384.80.54.5691.709DXFQuote
L 50×50×5505050.811.253.155DXFQuote
L 50×50×6505060.913.133.719DXFQuote
L 50×50×8505081.216.574.79DXFQuote
L 65×65×6656561.229.996.444DXFQuote
L 75×75×6757561.446.888.677DXFQuote
L 75×75×8757581.860.1811.29DXFQuote
L 76×76×6.476766.41.551.729.467DXFQuote
L 100×100×810010082.5148.220.57DXFQuote
L 100×100×10100100103.018025.24DXFQuote
L 102×102×9.51021029.53.0183.225.1DXFQuote
L 150×150×12150150125.6750.169.42DXFQuote
L 152×152×12.715215212.76.0821.975.19DXFQuote

Catalog dimensions identify standard section options, not live inventory. Confirm tooling, material, quantity and production timing in the quotation.

Unequal legs or a size not listed: custom pultrusion

Properties

Material reference · E23-ISO

Published reference values for the general-purpose isophthalic polyester laminate. Match the section, formulation and supporting documents before selecting design values for an order.

PropertyReference valueMethod reference
Tensile modulus (longitudinal)EN ISO 527-423 GPaEN ISO 527-4
Tensile modulus (transverse)EN ISO 527-47 GPaEN ISO 527-4
Tensile strength (longitudinal)EN ISO 527-4240 MPaEN ISO 527-4
Flexural strength (longitudinal)EN ISO 14125240 MPaEN ISO 14125
Interlaminar shear strength (ILSS)EN ISO 1413030 MPaEN ISO 14130
Pin-bearing strength (longitudinal)EN 13706-2 Annex E150 MPaEN 13706-2 Annex E
DensityEN ISO 11831.9 g/cm³EN ISO 1183
Glass contentEN ISO 117265–70% by weightEN ISO 1172

The listed moduli, tensile and flexural strengths, and pin-bearing strength use EN 13706-3 E23 minimums. ILSS, density and glass content are the published E23-ISO material references. These values and method names do not constitute a test report for the selected profile. Full property table and test methods

For a connection angle, confirm the proposed laminate and assess the fasteners, holes, bearing surfaces and load direction together. Nominal section properties alone do not establish cleat capacity.

Resin routes to review

  • Isophthalic polyesterThe E23-ISO reference uses this resin family. Confirm its suitability for the profile and service conditions.
  • Fire-retardant polyesterState the required fire test and classification, then confirm evidence for the offered formulation and specimen scope.
  • Vinyl esterA candidate for chemical exposure. Provide the chemicals, concentrations, temperatures and exposure duration; specify fire requirements separately.
  • PolyurethaneReview the proposed profile, processing route and mechanical requirements with the supplier.
  • PhenolicA route to evaluate where fire, smoke or toxicity criteria apply. Confirm manufacturability and the relevant test evidence.

A change of resin, reinforcement, pigment or surface finish can change the applicable properties and evidence. Confirm the grade and reports for the offered configuration. Compare resin systems

Review available documents and their scope

Free tool · angle presetSize an FRP angle: bending, shear and deflection Enter your span and loads for a preliminary member check. Cleats, eccentric loading, fasteners and anchorage need a connection-specific assessment.
