Fiberglass channel (FRP) profiles

Pultruded fiberglass C and U sections for secondary framing and fabricated supports. Compare dimensions and catalog weights, then define cut lengths, holes, connections and the required material.

FIG. 1 U 152×43×6.4Schematic · not to scale
A
1,441 mm²
Ix
435.7 cm⁴
Mass
2.2 kg/m

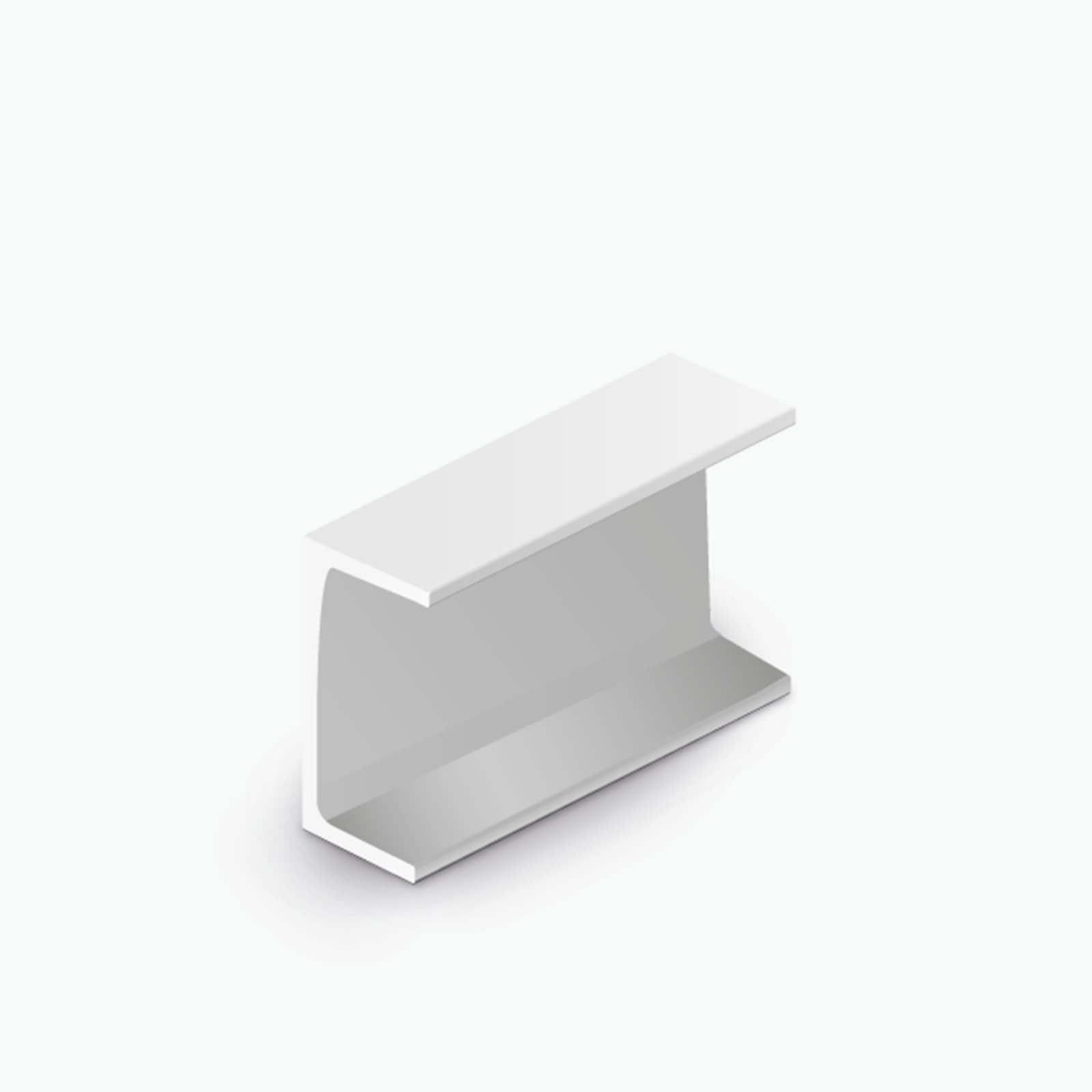

Cross-section of U 152×43×6.4, one catalog size. Mass is the published catalog value; A and Ix are calculated from the nominal section.
Catalog sizes
19
Depth
38–360 mm
Mass
0.4–15 kg/m
Section
Open C / U

Last updated

Request a quoteFind a sizeWhatsApp

Overview

A plain pultruded channel is a profile length that can be specified for framing or fabricated into a support. Define the bearing faces, unsupported length, load direction and connection details before selecting a section from the table.

For a slotted strut, include the slot pattern and mating hardware. For cable routes, distinguish a support bracket from the tray or ladder it carries. The cable-system guide sets out the components and documentation needed to review a complete package.

  • Plain C and U sections
  • Specify holes and fittings
  • Color and surface by agreement
  • 6 m lengths or cut to size

Typical uses

Sizes 19 catalog sizes

Filter and compare in the profile finder
Dimensions in mm, mass in kg/m. Ix and Wx are calculated from the nominal section, for preliminary sizing.
FRP channel catalog sizes with nominal section properties. Select a column heading to sort.
ModelDrawing and quote
U 38×13×4.838134.80.44.3792.305DXFQuote
U 50×25×5502550.715.386.15DXFQuote
U 76×25×6.476256.41.052.3313.77DXFQuote
U 76×38×6.476386.41.472.5319.09DXFQuote
U 100×30×61003061.5113.722.74DXFQuote
U 100×50×61005061.8166.833.36DXFQuote
U 120×50×61205062.0258.143.02DXFQuote
U 150×40×61504062.1380.450.72DXFQuote
U 152×43×6.4152436.42.2435.757.33DXFQuote
U 152×43×9.5152439.53.2601.679.16DXFQuote
U 160×48×81604883.0643.180.38DXFQuote
U 200×60×82006083.81,301130.1DXFQuote
U 200×60×1020060104.61,570157DXFQuote
U 240×72×82407284.62,300191.7DXFQuote
U 240×72×1224072126.83,256271.3DXFQuote
U 254×76×9.5254769.55.63,187250.9DXFQuote
U 300×90×15300901510.47,948529.9DXFQuote
U 305×89×12.73058912.78.87,145468.5DXFQuote
U 360×108×183601081815.016,480915.6DXFQuote

Catalog dimensions identify standard section options, not live inventory. Confirm tooling, material, quantity and production timing in the quotation.

Allowable loads by spanA size not listed: custom pultrusion

Properties

Material reference · E23-ISO

Published reference values for the general-purpose isophthalic polyester laminate. Match the section, formulation and supporting documents before selecting design values for an order.

PropertyReference valueMethod reference
Tensile modulus (longitudinal)EN ISO 527-423 GPaEN ISO 527-4
Tensile modulus (transverse)EN ISO 527-47 GPaEN ISO 527-4
Tensile strength (longitudinal)EN ISO 527-4240 MPaEN ISO 527-4
Flexural strength (longitudinal)EN ISO 14125240 MPaEN ISO 14125
Interlaminar shear strength (ILSS)EN ISO 1413030 MPaEN ISO 14130
Pin-bearing strength (longitudinal)EN 13706-2 Annex E150 MPaEN 13706-2 Annex E
DensityEN ISO 11831.9 g/cm³EN ISO 1183
Glass contentEN ISO 117265–70% by weightEN ISO 1172

The listed moduli, tensile and flexural strengths, and pin-bearing strength use EN 13706-3 E23 minimums. ILSS, density and glass content are the published E23-ISO material references. These values and method names do not constitute a test report for the selected profile. Full property table and test methods

Specify the channel formulation and surface finish with the support drawing. Confirm applicable material evidence and connection checks for the proposed section.

Resin routes to review

  • Isophthalic polyesterThe E23-ISO reference uses this resin family. Confirm its suitability for the profile and service conditions.
  • Fire-retardant polyesterState the required fire test and classification, then confirm evidence for the offered formulation and specimen scope.
  • Vinyl esterA candidate for chemical exposure. Provide the chemicals, concentrations, temperatures and exposure duration; specify fire requirements separately.
  • PolyurethaneReview the proposed profile, processing route and mechanical requirements with the supplier.
  • PhenolicA route to evaluate where fire, smoke or toxicity criteria apply. Confirm manufacturability and the relevant test evidence.

A change of resin, reinforcement, pigment or surface finish can change the applicable properties and evidence. Confirm the grade and reports for the offered configuration. Compare resin systems

Review available documents and their scope

Free tool · channel presetSize an FRP channel: bending, shear and deflection Enter your span and loads for a preliminary member check. Connection details and complete tray or strut-system performance require their own review.

Applications

Documents

  • Data sheet19 sizes · web page

    Channel datasheets

    Issued by
    F1 Composite

    One page per size: dimensions, calculated section properties, E23 laminate data and, where published, allowable load by span.

    Open the datasheets
  • CADDXF · 19 sizes

    Channel section drawings

    Issued by
    F1 Composite

    Dimensioned cross-sections that open in AutoCAD, DraftSight or LibreCAD. Download one from its row in the size table; no login or email.

    Go to the size table
  • Data sheetPDF · 3 MB

    FRP Profile Design Manual — DOC-PF-2026-EN Rev. B

    Issued by
    F1 Composite
    For
    Structural shapes

    Revision B (October 2026), generated from the website's catalog, laminate and design-basis data: EN 13706 E23 laminate values beside the grade minimums, section properties of all 114 catalog sizes, allowable uniform loads to the published LRFD screening basis, application guides, durability stated by resin formulation, fabrication and inspection. A preliminary-sizing reference, not a project approval or batch certificate; it supersedes the withdrawn Rev. A.

    Download PDF
  • CertificatePDF · 142 KB

    EPD & Carbon Footprint — Pultruded GFRP Composite Profiles

    Issued by
    CABR
    For
    Standard profiles

    Unofficial English summary of the environmental product declaration and carbon footprint analysis for pultruded GFRP composite profile products, with 1 m² functional unit. Calculation reference CABR-CFC-01(02)-2025(20030)1, cradle-to-gate 33,934.34 g CO₂e/m², distribution 254.59 g, cradle-to-grave 36,099.32 g. Standards: GB/T 24025-2009 (ISO 14025-aligned Type III EPD), GB/T 32161-2015, ISO 14067, PAS 2050. Issued by China Academy of Building Research Co., Ltd. (CABR) Certification Center on April 30, 2025. The original Chinese documents, with the holder and scope, are provided on request.

    Download PDF
  • CatalogOn request

    Product Catalog 2024

    Issued by
    F1 Composite
    For
    All products

    Complete catalog of standard pultruded FRP profiles with dimensions, properties, and ordering information.

    Request this document
  • CertificateOn request

    ISO 9001 Certificate

    For
    All products

    Request the current quality-management certificate with its edition (ISO 9001:2015, or ISO 9001:2026 after transition), holder, validity and scope for your proposed supply.

    Request this document
  • CertificateOn request

    CE Declaration of Performance

    For
    All products

    Request product-specific performance and applicable conformity documentation; confirm the intended use and assessment route.

    Request this document

All downloads and CADTest reports and their scope

Questions buyers ask

Is a fiberglass channel the same as a strut channel or cable tray?

This page lists plain pultruded C and U sections. A slotted strut requires defined slot geometry, compatible fittings and support loads. A complete cable tray or ladder also needs side rails, rungs or a base, splices and system documentation. State whether your inquiry covers profile lengths, fabricated supports or a complete cable system so the offered scope can be confirmed.

What colors are available for FRP channels?

State the required color or RAL reference and whether the channel will be used outdoors. Color, surface veil or coating, quantity and delivery are confirmed for the proposed formulation. Agree a sample and surface specification where appearance or UV exposure matters.

Can FRP channels be bolted to dissimilar materials?

Bolted connections can be evaluated using the channel and mating-part drawings. Specify fastener material, hole pattern, washers, bearing surfaces and exposure conditions. Check the complete connection for load transfer and corrosion of its metallic parts; selecting an FRP channel does not remove those checks.

FRP vs steel comparisonDesign guidesWhat is FRP?

Quote FRP channels

Send the channel size, lengths and quantities. Identify whether you need plain sections, fabricated supports or a cable-system package. We reply within one business day; a formal quotation follows once the specification and delivery are reviewed.

Request a quoteWhatsApp
