FRP grating supplier for Saudi Arabia

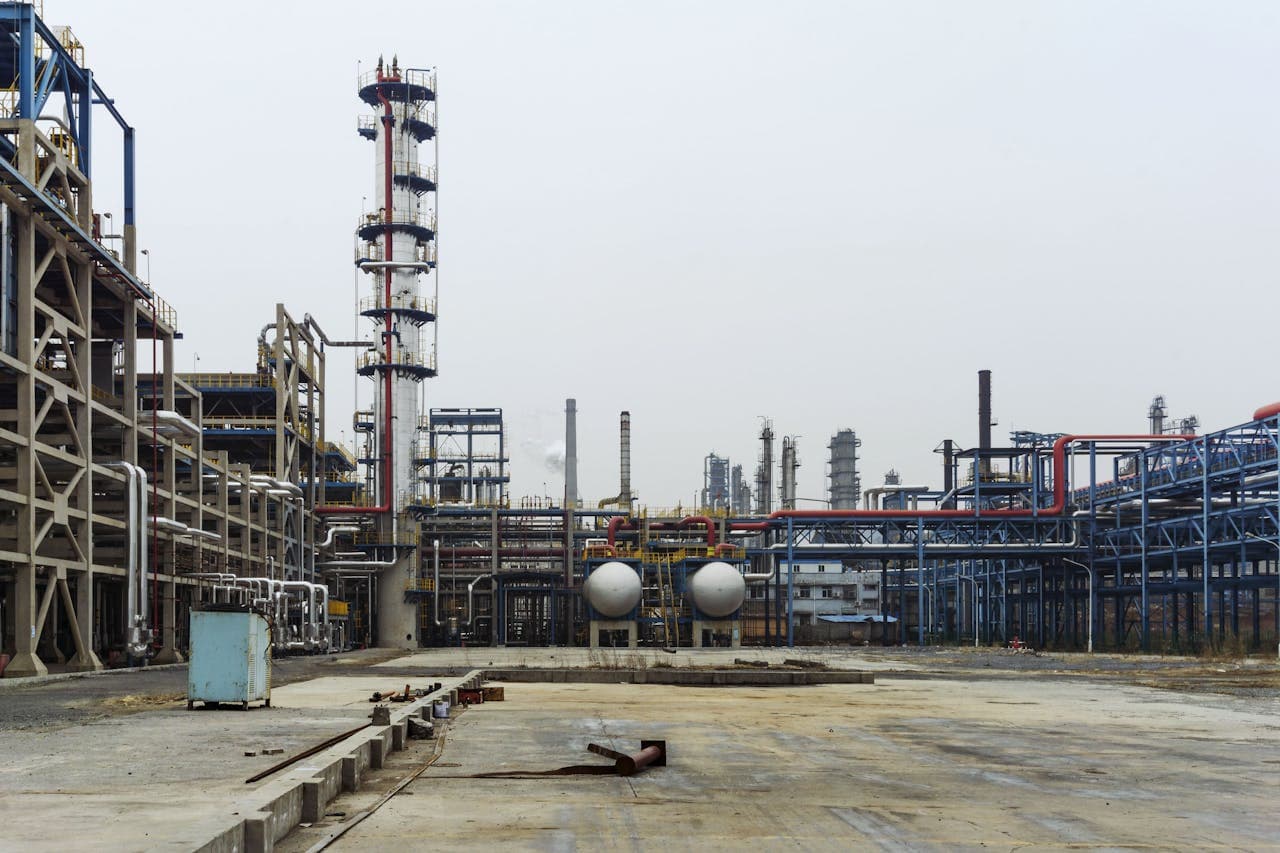

Saudi petrochemical and refinery sites combine summer air temperatures above 50°C, salty coastal air in the Eastern Province and splash from sulfuric acid, caustics and hydrocarbons. Galvanized steel grating in that service needs frequent recoating or replacement. Vinyl ester FRP grating does not rust and needs no recoating, which removes a recurring cost for grated walkways and access platforms. Its design life still depends on the resin, UV protection and an inspection plan. FRP grating is an established material on Gulf petrochemical projects.

Saudi project specifications usually reference ASTM E84 for flame spread (Class 1 / Class A, FSI ≤ 25), EN 13501-1 where European standards apply, a slip-resistance test for the surface, ASTM D635 for self-extinguishing behavior, and the operator's own material standards (for Aramco scopes, its SAES specifications). We supply vinyl ester grating with test reports against these standards on request and check operator-specific requirements for each project.

Sea freight from Shanghai or Ningbo to Jebel Ali, the UAE port most commonly used for shipments to Saudi Arabia, takes 18–25 days. Less frequent direct sailings to Dammam and Jeddah typically take 22–32 days. For time-sensitive Saudi orders, F1 Composite generally ships CIF Jebel Ali or DAP to the project site, with inland trucking through the GCC road network. Transit from Jebel Ali to Riyadh, Jubail, Yanbu or Ras Tanura takes 1–3 days. The total lead time from purchase order to site is 6–9 weeks for standard FRP grating; custom panel sizes add 2–3 weeks for fabrication.

Yes, with a vinyl ester resin. Vinyl ester grating keeps most of its structural properties at a continuous 65°C, and its heat-distortion temperature is above 100°C, well over realistic outdoor surface temperatures in Saudi Arabia, even on dark grating in full sun. FRP expands about a third as much as aluminum with temperature, so daily heating and cooling does not open gaps the way it can with aluminum grating. UV-stabilized resin and surfacing veils protect the top surface; plan periodic inspection in strong sun.

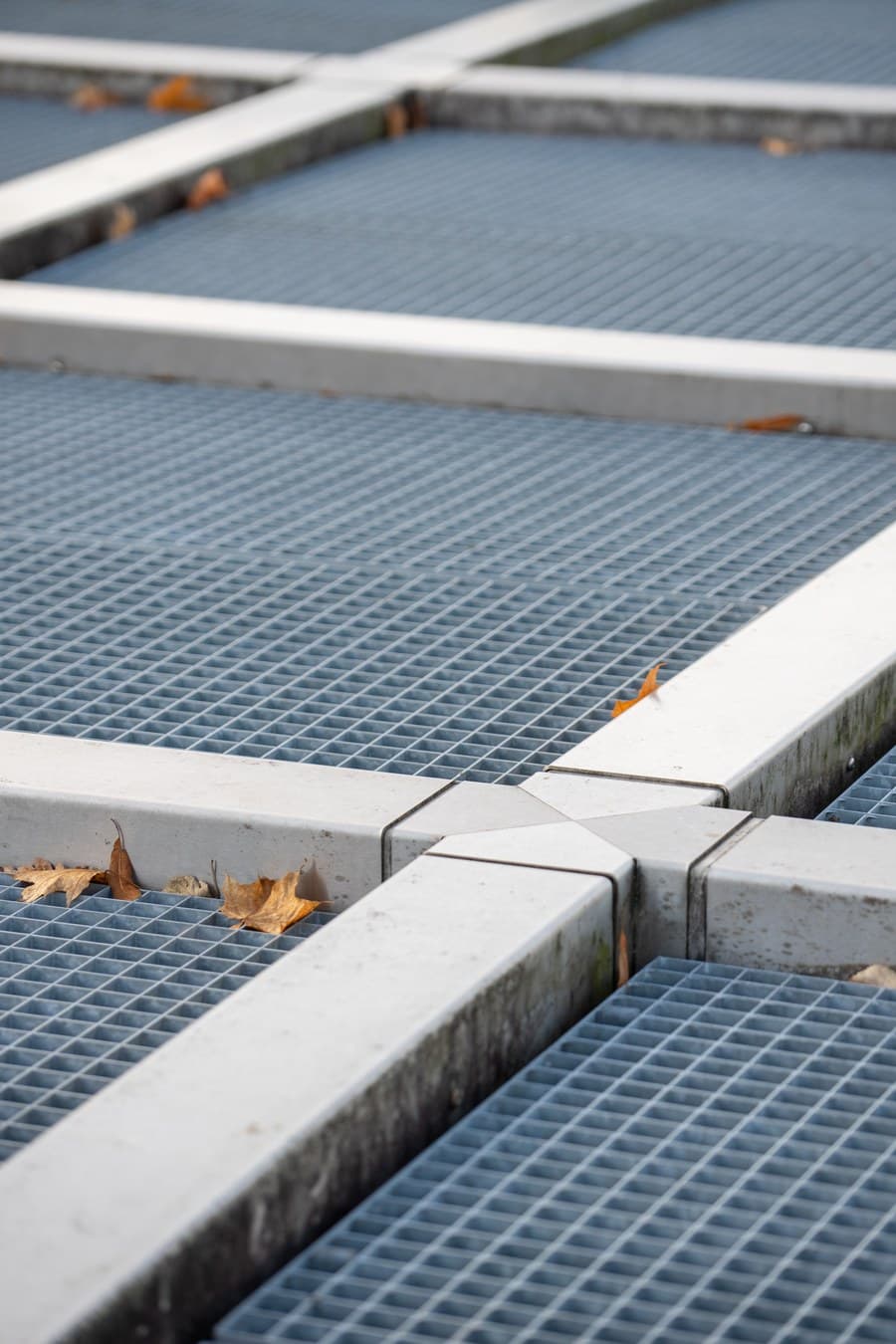

The most common specification for Saudi petrochemical and infrastructure projects is molded FRP grating with 38 × 38 mm mesh, 38 or 50 mm deep, in vinyl ester resin with a concave slip-resistant surface. Standard panel sizes are 1,220 × 3,660 mm (4 × 12 ft) and 1,500 × 4,000 mm. Load capacity depends on span and panel depth, so we check the proposed panel against your design loads using the load tables. Pipe-rack supports and heavy maintenance access usually use pultruded I-bar grating, 38 or 50 mm deep.

We prepare project documentation for Aramco, SABIC and Maaden scopes: mill test certificates to ASTM D790 / D638, third-party fire and chemical-resistance test reports, country-of-origin certificates and traceability from raw-material batch to finished panel. ISO 9001 and other certificates are provided on request with the holder, number and scope. For Aramco-controlled scopes we supply through approved Saudi distributors or the project's nominated EPC procurement channel; F1 does not hold its own Aramco vendor code. For SABIC and Maaden work we follow the qualification route the project specifies.

Both. The heat, salt and chemical exposure in the Eastern Province (Dammam, Jubail, Ras Tanura, Khobar) makes the strongest case for FRP over steel. Infrastructure and industrial projects in Riyadh use the same vinyl ester grating for its fire performance, slip-resistant surface and freedom from recoating. Riyadh orders usually ship DAP to site by road from Jebel Ali, 1–3 days after the container clears the port.

Yes. Jeddah Islamic Port receives container traffic from China on a broadly similar transit-time basis to Jebel Ali, so F1 Composite quotes CIF Jeddah alongside CIF Jebel Ali and lets project schedule and total landed cost decide the routing. Jeddah and the Red Sea coastal strip carry the same salt-air corrosion driver as the Gulf coast, so the vinyl ester grating specification for Jeddah projects is the same as for Eastern Province petrochemical sites.
