Fiberglass handrail and guardrail systems

Industrial FRP handrail systems in square- and round-tube configurations, with posts, top and middle rails, kick plates, splices, molded fittings and base options. Manual-verified nominal specifications are separated from the project load, connection and anchor design.

FIG. 1 Handrails at an industrial platformReference photo
Yellow fiberglass handrail and guardrail systems installed around industrial platforms and stairs
Manual-derived application reference, cropped to remove all source branding. It demonstrates system context and is not presented as an F1 project case study.
Systems
Square and round tube
Parts
Posts, rails, fittings, bases
Catalog spacing
Up to 1,500 mm
Release
Approved BOM

Last updated · Reviewed by Haifeng Gong, R&D Lead

Request a quoteSee the specificationsWhatsApp

Specify the rail, post, fitting, kick plate and base as one system

A fiberglass railing is not qualified by a tube size alone. The finished assembly transfers top-rail and intermediate-member loads through posts, splices, corner fittings, bases, anchors and the supporting substrate. F1 therefore keeps the catalog geometry visible while making the project load basis and release drawing explicit.

For vertical access, use the separate fiberglass fixed ladder systems page; for raw profile stock, use the round- and square-tube pages.

Square and round FRP handrail system specifications

The source tables are rebuilt below as accessible, supplier-neutral HTML. Suspect or internally conflicting fields are not silently corrected; they are withheld or carried into a release note until an approved BOM resolves them.

Square system

Square-tube FRP handrail system

A rectilinear post-and-rail arrangement with internal splices, kick plate, corner fittings and an optional base detail.

ComponentNominal catalog value
Post spacing1,500 mm maximum
Handrail height1,220 mm maximum
Top railSquare tube 50 × 50 × 6.4 mm
Middle railSquare tube 50 × 50 × 6.4 mm
Insert spliceSquare tube 38 × 38 × 6.4 mm
Kick plate100 × 14 × 3 mm
Kick-plate splice plate45 mm wide × 101 mm long × 6 mm thick
90° kick-plate splice angle54 × 29 × 6.4 mm
90° handrail fitting3 × FRP angles, 152 × 152 × 13 mm; 38 mm long
Adjustable fittingPlastic fitting, 39°–180°
Catalog connection rivet4 × 20 mm

Release note: F1's catalog drawing and parts list differ on part of the middle-rail geometry; the approved project BOM and connection drawing govern the released assembly.

Round system

Round-tube FRP handrail system

A round post-and-rail arrangement using molded elbow, tee, cross and foot-base fittings with a separate kick plate.

ComponentNominal catalog value
Post spacing1,500 mm maximum
Handrail height1,220 mm maximum
PostRound tube 50 × 5 mm (catalog notation)
Top railRound tube 50 × 5 mm (catalog notation)
Middle railRound tube 50 × 5 mm (catalog notation)
Kick plate101 × 14 × 3 mm
FittingsBMC elbow, tee, cross and foot base
Catalog fitting screwsM5 × 55; elbow 2, tee 2, cross 3
Catalog foot-base anchorsM6 × 90; two per foot base

Release note: The catalog's kick-plate splice length is not reproduced here; final splice size, fastener material and anchorage come from the approved project drawing.

Connections and components

FIG. 2 Square system: splices, corners, kick plateManual drawing
Square fiberglass handrail system connection concept with splices, corner details, kick plate and optional base
Manual-derived connection concept. Because one illustrated middle-rail detail conflicts with the source table, the approved BOM—not this image—controls the released geometry.

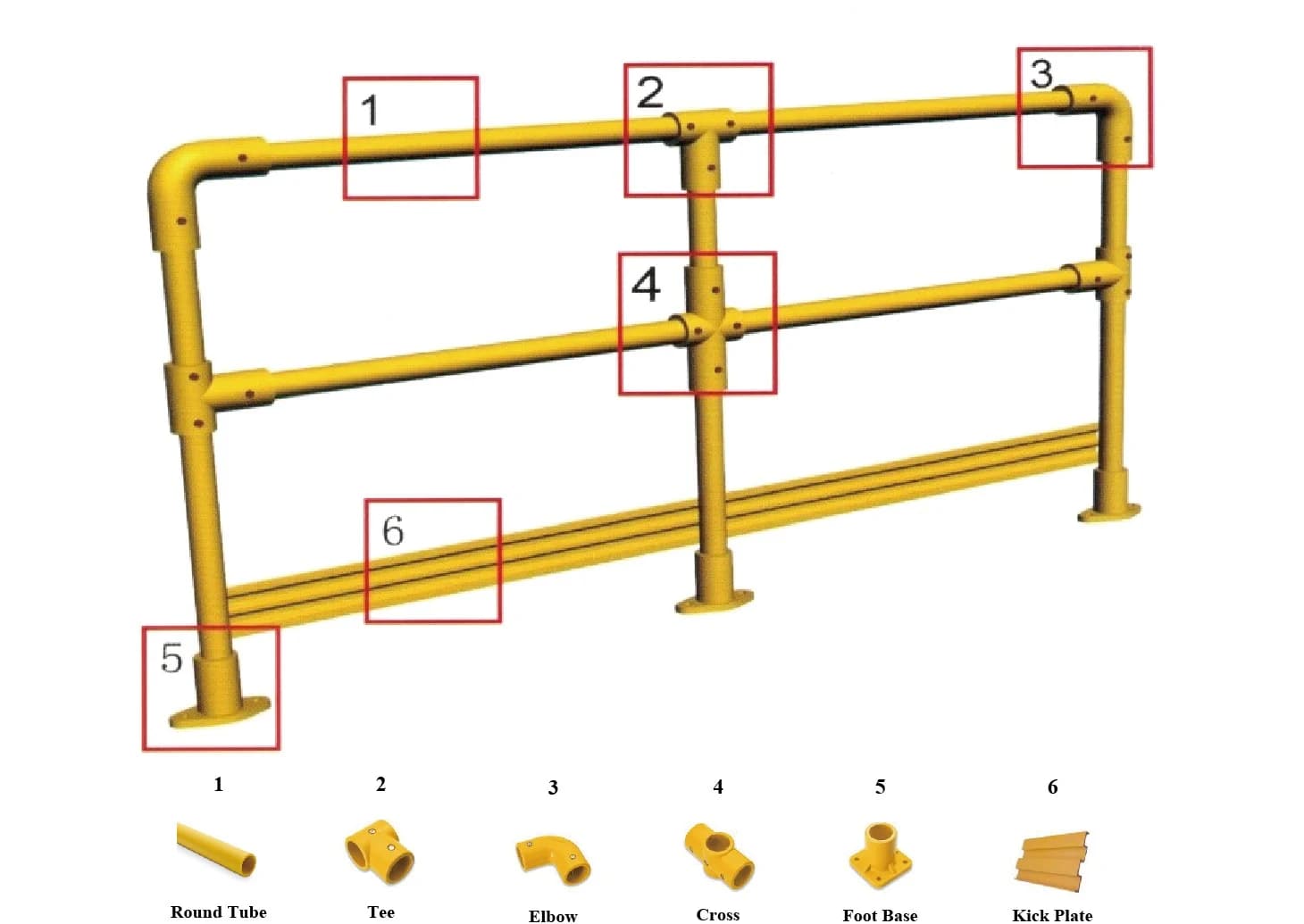

FIG. 3 Round system: tube, tee, elbow, cross, foot baseManual drawing
Round fiberglass handrail assembly with numbered tube, tee, elbow, cross, foot-base and kick-plate components
Manual-derived round-system component reference. Diagram numbers identify component types only; they are not public SKUs.

Six inputs for a coordinated industrial handrail system

  1. Input 1

    Layout and terminology

    Mark straight runs, corners, gates, stair flights, returns and openings. State whether each run functions as a handrail, guardrail or combined stair-rail system under the adopted code.

  2. Input 2

    Load basis

    Provide the governing point load, line load, infill load and deflection criteria. Post spacing, rail section, joints, bases and substrate must be checked together.

  3. Input 3

    Base and substrate

    Identify concrete, steel, FRP framing or side-mount conditions, with slab edge distance and available fixing depth. Catalog anchor sizes are not a universal anchorage design.

  4. Input 4

    Exposure and finish

    List chemicals, concentration, temperature, outdoor UV, washdown and electrical conditions. Resin, color, veil and metal hardware are then selected for the actual service.

  5. Input 5

    Kick plate and openings

    State toe-board requirements, platform edge detail, allowable openings and interfaces with grating, deck panels, ladders and stair treads.

  6. Input 6

    Approved release set

    Agree the layout revision, post schedule, tube system, fittings, splices, bases and BOM before production or field drilling. Identify who designs and supplies anchors, and which acceptance records are included.

Load-basis checkpoint. OSHA 1910.29 applies criteria to completed guardrail systems, while ISO 14122-3:2016 covers stairs, stepladders and guardrails within its machinery-access scope. Neither standard can be claimed from catalog tube sizes or post spacing alone.

Agree the documents before releasing a handrail order

Keep the layout, component list and acceptance requirements on the same revision. The quotation identifies which components, engineering tasks and documents are included.

  1. Handoff 1

    Marked layout and BOM

    Identify each run, post, rail, fitting, splice, gate and kick plate with a part mark and quantity. Record the selected square or round system, cut lengths, holes, drawing revision and interfaces with stairs or platforms. Mark anchors and other items supplied by others.

  2. Handoff 2

    Design and release responsibility

    Name the party approving loads, post spacing, connections, bases and substrate fixings. Agree the fabrication tolerances and inspection points before release. Component supply does not automatically include anchor design, installation or approval of the supporting structure.

  3. Handoff 3

    Acceptance and delivery records

    List the required material / batch records, dimensional checks, part identification, packing list and installation instructions in the order. Confirm which documents are available and included. Any required load test or certification must match the offered assembly; additional qualification work needs a separate agreement.

Questions buyers ask

What is the difference between an FRP handrail and an FRP guardrail?

A handrail provides a graspable support along a stair or walking route. A guardrail protects an exposed edge and includes top rail, intermediate protection and sometimes a toe board. One assembly can perform both functions only when its geometry, graspability, loads and mounting satisfy the governing requirements for both.

What square-tube fiberglass handrail sizes are listed?

The source catalog lists 50 × 50 × 6.4 mm square top and middle rails, a 38 × 38 × 6.4 mm insert splice, 100 × 14 × 3 mm kick plate, 1,500 mm maximum post spacing and 1,220 mm maximum height. These are nominal catalog references, not a blanket load-compliance statement.

What round-tube FRP handrail components are listed?

The catalog lists 50 × 5 mm round-tube notation for posts, top rails and middle rails, a 101 × 14 × 3 mm kick plate, and molded elbow, tee, cross and foot-base fittings. Final tube interpretation, fitting detail, fastener material and base anchorage are confirmed on the approved BOM and drawing.

Do the fiberglass handrail systems comply with OSHA or ISO 14122-3?

They can be configured and evaluated against a stated project basis, but the catalog dimensions alone do not prove compliance. OSHA 1910.29, for example, evaluates the completed guardrail under specified forces; ISO 14122-3 has a defined machinery-access scope. Post spacing, rail section, joints, bases, anchors and substrate all affect the result.

Should I choose round or square FRP handrail?

Choose from the required handrail function, project geometry, fitting strategy, visual preference and approved load check. The round system uses molded tee, elbow and cross fittings; the square system uses internal splices and fabricated corner details. Do not swap components between the two catalog systems without a revised BOM.

What information is needed for an industrial FRP handrail quote?

Send total run, plan and elevations, stair slopes, height and post-spacing limits, governing load standard, base substrate, kick-plate requirement, exposure, color, gates and delivery destination. State whether you need component supply or a coordinated package. Agree the BOM, layout revision, design responsibility and included acceptance documents in the quotation; a tube catalog does not establish system certification or report availability.

Quote a handrail system

Send the platform or stair layout, load basis, bases and destination. Identify component-only or coordinated supply and any required acceptance documents. We reply within one business day; a formal quotation follows once the specification and delivery are reviewed.

Request a quoteWhatsApp
