Resin Mixing & PU Injection
Compare batch mixing and metered resin injection for composite production. Define material compatibility, dosing, cleaning and the connection to the line.
Define the proposed supply package
Equipment, tooling and material sourcing support forms part of F1 Know-How & Services. We review requirements within a technology-transfer, production-setup or improvement engagement.
Agree the exact equipment configuration or material grade, qualification documents, delivery and support responsibilities before ordering. Availability, pricing, lead time and warranty are confirmed for the proposed package.
What to specify and what to request
| Scope | Your specification | Requested supplier response |
|---|---|---|
| Batch mixer | Resin and filler system, batch size and mixing purpose | A proposed mixing and transfer arrangement for the named formulation |
| Metering and mixing | Component count, ratio basis, flow range and material viscosity | The specified accuracy, monitoring and calibration method |

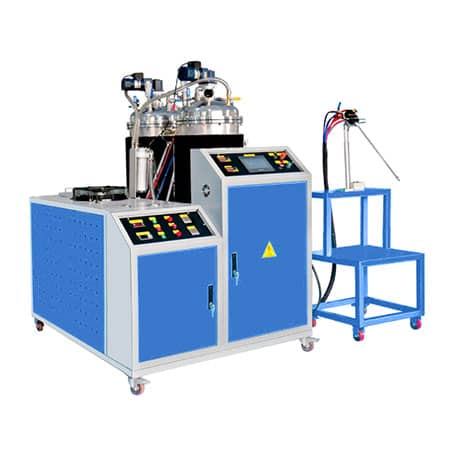

| PU injection package | Component conditioning, mixing head and injection-box interface | Compatibility confirmation and a trial using the proposed PU system |
Build the injection package by module
| Module / stage | Define before procurement | Required output / record |
|---|---|---|

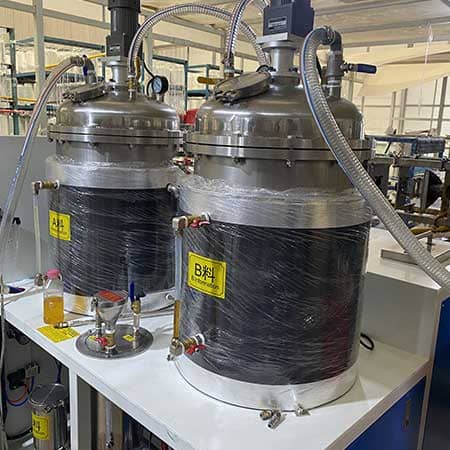

| A/B tanks and transfer | Separate storage, replenishment, level indication and low-level response. | Tank/material compatibility, transfer arrangement and alarms. |
| Conditioning | Agitation, moisture control, temperature conditioning or degassing where required by the formulation. | An explicit included/optional schedule; tank and hose heating stated separately. |
| Metering | Component flow range, ratio basis (mass or volume), viscosity and filler characteristics. | Pump/seal selection, calibration method and ratio verification records. |
| Mixing and hoses | Mixer type, connection geometry, residence time and replacement/cleaning access. | Mixing-head and hose specification matched to the injection interface. |
| Injection box and die | Fiber entry, sealing, mounting and the transition into the heated tool. | Joint drawings and a trial that includes both the dosing unit and tooling. |
| Controls and shutdown | Coordination with pulling, monitoring, fault response and approved cleaning arrangements. | Commissioning checklist, supplier operating instructions and consumables list. |
Verify dosing and product quality together
| Module / stage | Define before procurement | Required output / record |
|---|---|---|
| Metering verification | Use the agreed method across the intended operating range and formulation. | Record actual delivery and ratio, with the basis and instruments identified. |
| Conditioning and controls | Confirm the specified alarms, temperature functions and line communication. | A functional check record against the purchased configuration. |
| Representative product trial | Use the approved fiber/layup, resin and tool combination. | Part dimensions, surface/cure checks and the required material tests. |
| Changeover and maintenance | Confirm consumables, replacement parts and supplier-defined cleaning steps. | Operator training record and the agreed aftercare contacts. |
Resolve acceptance before placing an order
CHECK 1
Identify the exact chemistry
Provide the formulation supplier’s technical and safety documents. Pumps, seals, tanks and cleaning provisions must be selected for the actual materials and intended operating conditions.
CHECK 2
Treat the injection box as an interface
Confirm the connection between dosing equipment, mixing head, injection box and die. Agree how the package responds to line starts, stops and abnormal conditions.
CHECK 3
Plan changeover and acceptance
Define color or formulation changes, cleaning provisions, calibration checks and material consumption during trials. Request the operating documents and support scope from the proposed equipment supplier.
Purchasing questions
Can a batch mixer be used as a PU metering unit?
These are different duties. A mixer blends a batch; a metering package delivers components in a controlled ratio and integrates with the injection process. Specify the required function before comparing offers.
Related sourcing specifications
Browse equipment & tooling →Technology transfer & consulting →Profile resin selection →
Discuss Resin Mixing & PU Injection
Share the specification and destination. The next step is to define the equipment or material support needed within your Know-How engagement.
Drawings and technical documents can follow after the initial contact.
- 1Resin/component technical data and safety data sheets
- 2Batch or continuous operation and output range
- 3Ratio requirements and filler content, where relevant
- 4Existing die and line interface drawings
- 5Changeover, acceptance and support requirements
