FRP material is not one standardized substance in the way that 6061-T6 aluminum or A36 steel identifies a familiar grade. It is a designed material system made from reinforcement, matrix resin, additives, and a manufacturing process. Change the fiber direction, resin, glass fraction, cure, or process and the resulting laminate can have different strength, stiffness, chemical resistance, fire behavior, and cost.
That variability is an advantage when it is controlled and documented. It allows an engineer to place strength where the load travels and select a matrix for the actual environment. It becomes a risk when a specification says only “FRP” and assumes every supplier's laminate is interchangeable. This guide shows how to turn the generic term into a selection that can be checked on a drawing, datasheet, quotation, and inspection report.
The four decisions inside an FRP material
The first decision is reinforcement type. E-glass dominates general structural pultrusion because it balances performance, corrosion resistance, availability, and cost. ECR glass improves resistance in acidic service. Carbon fiber raises modulus and can reduce section size or deflection, but changes cost and electrical behavior. Aramid and basalt address narrower impact, weight, temperature, or durability requirements.
The second is fiber architecture. Unidirectional rovings maximize properties along the profile. Continuous strand mat and woven fabrics add transverse, bearing, and splitting resistance. Surface veil creates a resin-rich corrosion and UV barrier. The percentage alone is not enough: 65% glass aligned in one direction does not behave like the same amount distributed in woven layers.
The third is resin chemistry. Polyester serves general structural environments. Vinyl ester is commonly chosen for aggressive chemical, marine, and wet service. Polyurethane improves toughness and cross-direction performance in suitable pultrusion systems. Phenolic resin supports demanding flame, smoke, and toxicity requirements. Epoxy can provide high mechanical and fatigue performance where the process and economics justify it.

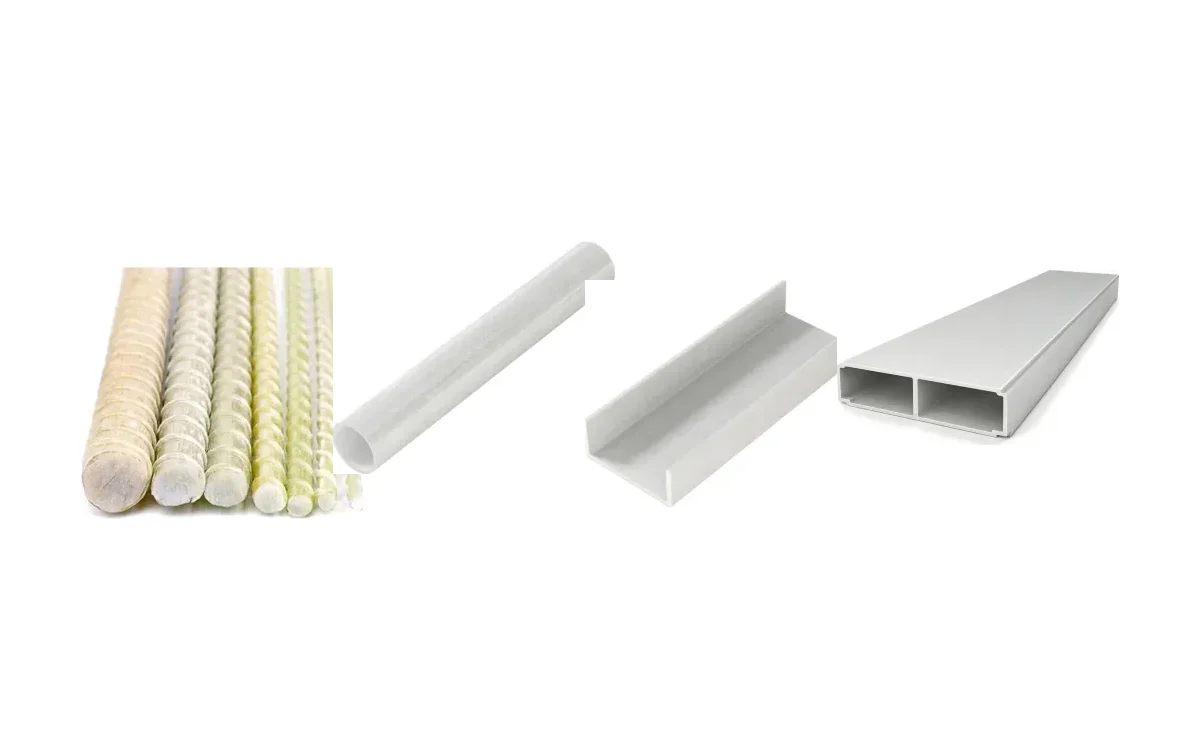

The fourth is manufacturing method. Pultrusion fits long constant-section members; molded grating and compression molding support panels or complex parts; filament winding creates pipe and tanks; infusion makes large shells. Process and material cannot be separated because the process establishes fiber placement, void control, surface condition, and dimensional repeatability.
How to read FRP material properties
Always ask three questions beside a number: in which direction, by which test, and on what specimen? Longitudinal tensile strength from a coupon cut along the pull direction is not transverse tensile strength. A flexural modulus is not an axial elastic modulus. A short-term coupon result is not an allowable design value for a member under sustained outdoor load.
For pultruded structural profiles, useful data normally include longitudinal and transverse tensile properties, flexural strength and modulus, shear strength, bearing strength, density, glass content, water absorption, thermal expansion, thermal conductivity, electrical properties, and fire results where applicable. The FRP technical data page maps each published property to a test method and explains what the value does—and does not—prove.

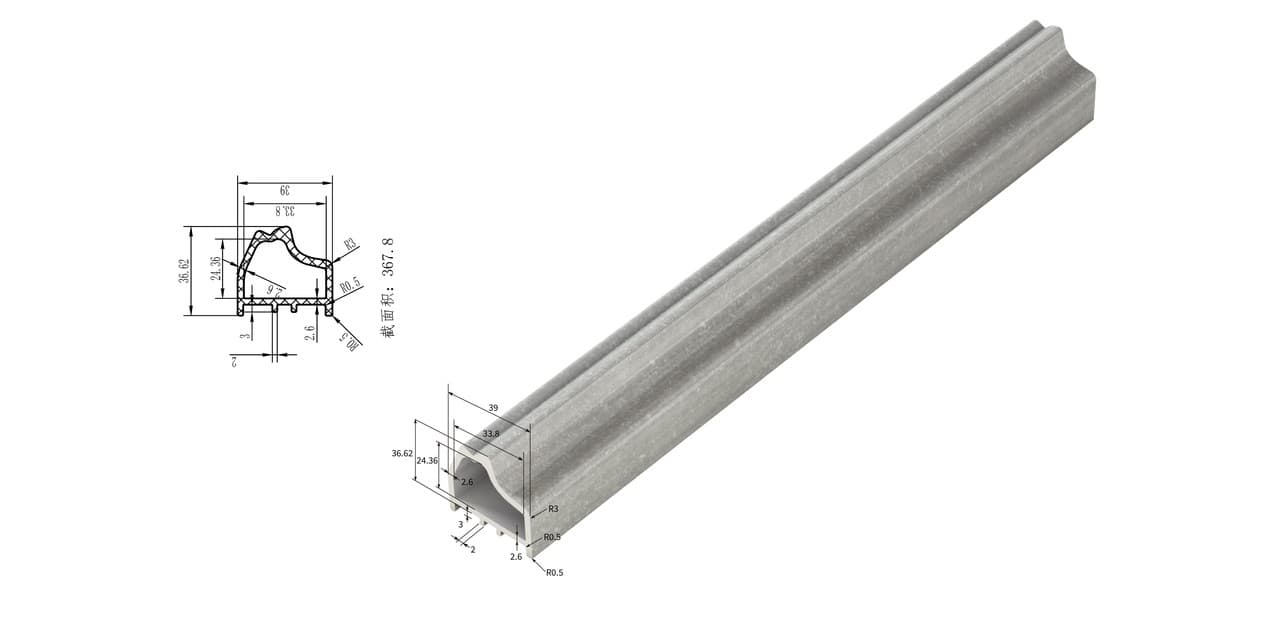

Section behavior adds another layer. Beam deflection combines material modulus with the second moment of area. Buckling depends on length, boundary conditions, geometry, and elastic properties. Connections introduce bearing, net-tension, shear-out, bolt preload, and local crushing. The FRP profile calculator and span tables are preliminary tools for those section-level questions; final design still follows the project's code and engineer of record.
Selecting FRP material by service environment
For corrosion service, identify the exact chemical, concentration, temperature, exposure mode, cleaning agent, and expected duration. “Chemical resistant” is not a material grade. Vinyl ester may be appropriate for one acid and unnecessary for another; a surfacing veil and adequate resin-rich barrier can be as important as the base resin.
For outdoor service, specify UV protection and color stability. Pultruded profiles normally use veil, pigment, and UV inhibitors; architectural finishes may add a qualified coating. For elevated temperature, compare continuous-use and glass-transition limits with mechanical demand, not only a short excursion temperature. For fire, name the required test, class, smoke criterion, thickness, and end use. Results from one resin, color, and section should not be transferred casually to another.
For electrical or thermal isolation, confirm both the base laminate and any fillers, fasteners, inserts, or surface treatments. FRP itself is non-corroding, but a completed assembly can still create galvanic or conductive paths through metal hardware. Selection therefore ends at the assembled system, not at the coupon.
A seven-step FRP material selection workflow
1. Define the function. Is the member carrying bending, axial load, shear, impact, enclosure load, or only acting as a thermal break? 2. Document the environment. Record chemicals, moisture, UV, temperature, fire, electrical, and cleaning exposure. 3. Set performance limits. Include strength, deflection, creep, fatigue, dimensional tolerance, surface finish, and design life. 4. Choose the manufacturing family. Select pultrusion, molding, winding, or infusion based on geometry and production volume. 5. Select fiber architecture and resin. Tie each choice to a requirement rather than a generic “premium” label. 6. Request comparable evidence. Require the test method, direction, specimen source, batch traceability, and applicable standard. 7. Verify the full member and connection. Check section properties, stability, holes, joints, fasteners, installation, and inspection.
What to put in an FRP material specification
A defensible pultruded-profile specification states the profile drawing and dimensions, manufacturing process, reinforcement type, minimum mechanical grade, resin family or exposure requirement, glass content range, dimensional tolerance, color and surface veil, fire or smoke classification where required, test methods, batch documentation, and acceptance criteria. EN 13706 can define a pultruded profile grade; ASTM D3917 can define dimensional tolerance. ASCE/SEI 74-23 provides a structural design framework where adopted or contractually referenced.
Avoid copying the highest numbers from several brochures into one impossible “FRP material” line. Use one production laminate with a coherent set of values, then verify that its section and joints satisfy the load case. If a standard profile meets the requirement, compare the fiberglass structural shapes. If the requirement demands a different geometry or laminate architecture, the custom pultrusion path connects material selection to tooling and sample validation.
